Kvarc Analóg szerkezetek / Quartz Analogue calibers

f = 32 768 [Hz]

Data	Picture	-

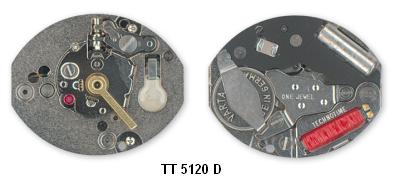

5120 5 1/2''' X 6 3/4''' d = 15.15 mm y = 13.00 mm h = 2.55 mm 3 jewels (X)
5130 5 1/2''' X 6 3/4''' d = 15.15 mm y = 13.00 mm h = 2.55 mm 5 jewels (X)
5180 5 1/2''' X 6 3/4''' d = 15.15 mm y = 13.00 mm h = 3.00 mm 3 jewels SEB (X)
5820 5 1/2''' X 6 3/4''' d = 15.15 mm y = 13.00 mm h = 3.21 mm 1 jewels (X)

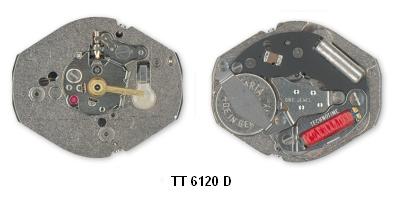

6120 6 3/4 X 8''' d = 17.80 mm y = 15.15 mm h = 2.55 mm 3 jewels (X)

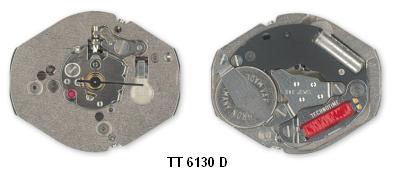

6130 6 3/4 X 8''' d = 17.80 mm y = 15.15 mm h = 2.55 mm 5 jewels (X)
6180 6 3/4 X 8''' d = 17.80 mm y = 15.15 mm h = 3.00 mm 3 jewels SEB (X)

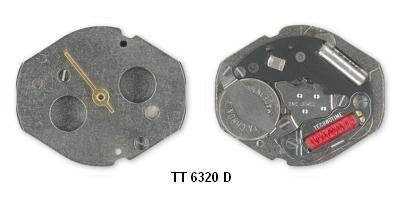

6320 6 3/4 X 8''' d = 17.80 mm y = 15.15 mm h = 3.25 mm 1 jewels (X)

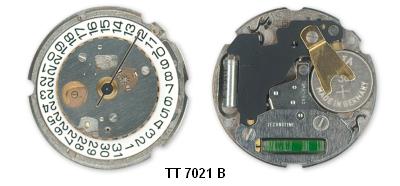

7021 8 3/4''' x = mm y = 19.40 mm h = 3.00 mm 5 jewels d (X)

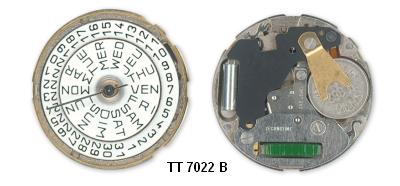

7022 8 3/4''' x = mm y = 19.40 mm h = 3.43 mm 5 jewels dd (X)

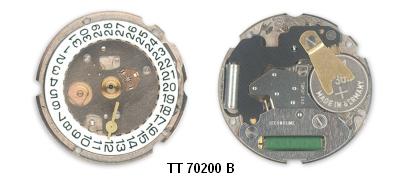

70200 8 3/4''' x = mm y = 19.40 mm h = 3.00 mm 7 jewels ss (X)

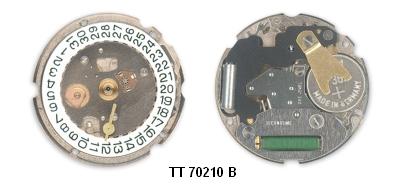

70210 8 3/4''' x = mm y = 19.40 mm h = 3.00 mm 7 jewels d ss (X)

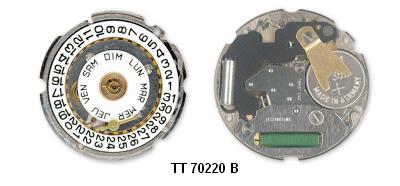

70220 8 3/4''' x = mm y = 19.40 mm h = 3.43 mm 7 jewels dd ss (X)

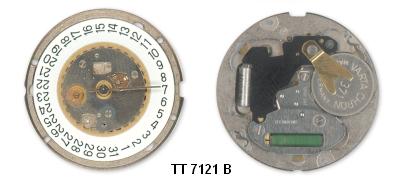

7121 10 1/2''' x = mm y = 23.30 mm h = 3.00 mm 5 jewels d (X)

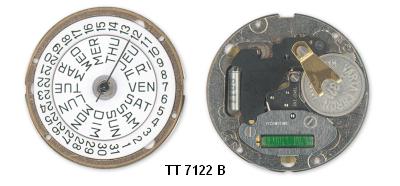

7122 10 1/2''' x = mm y = 23.30 mm h = 3.43 mm 5 jewels dd (X)

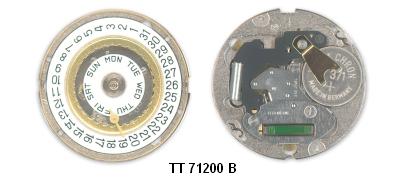

71200 10 1/2''' x = mm y = 23.30 mm h = 3.00 mm 7 jewels ss (X)
71210 10 1/2''' x = mm y = 23.30 mm h = 3.00 mm 7 jewels d ss (X)

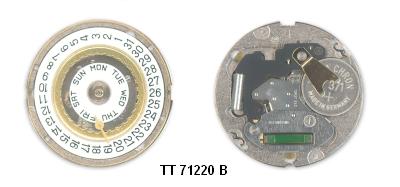

71220 10 1/2''' x = mm y = 23.30 mm h = 3.43 mm 7 jewels dd ss (X)

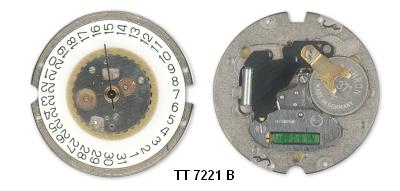

7221 11 1/2''' x = mm y = 25.60 mm h = 3.00 mm 5 jewels d (X)

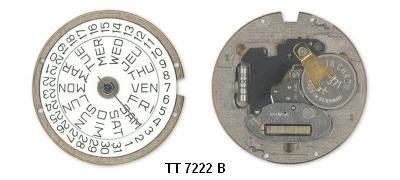

7222 11 1/2''' x = mm y = 25.60 mm h = 3.45 mm 5 jewels dd (X)

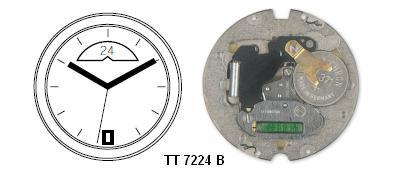

7224 11 1/2''' x = mm y = 25.60 mm h = 3.48 mm 5 jewels d GMT (X)

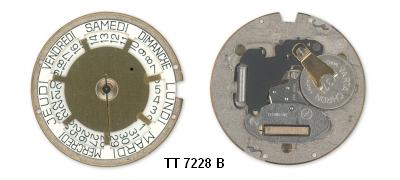

7228 11 1/2''' x = mm y = 25.60 mm h = 3.45 mm 5 jewels d (X)
7234 11 1/2''' x = mm y = 25.60 mm h = 3.48 mm 5 jewels d GMT (X)

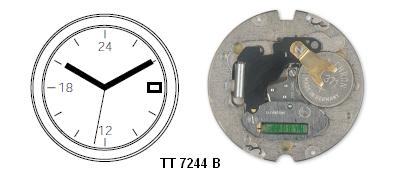

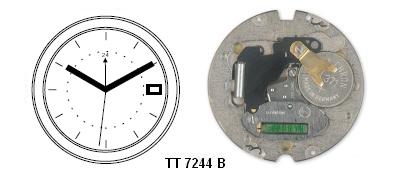

7244 11 1/2''' x = mm y = 25.60 mm h = 4.48 mm 5 jewels d 24H (X)

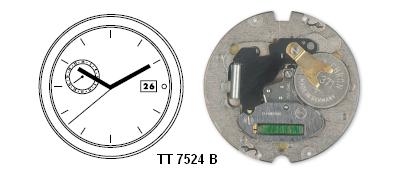

7524 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels d GMT (X)

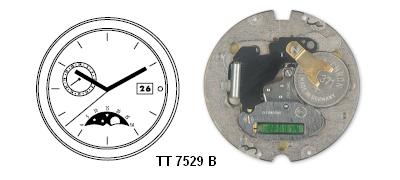

7529 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels d MPH (X)

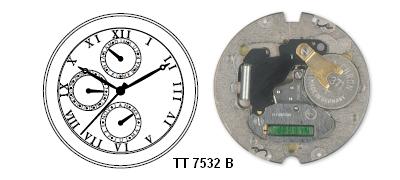

7532 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels dd MNT (X)

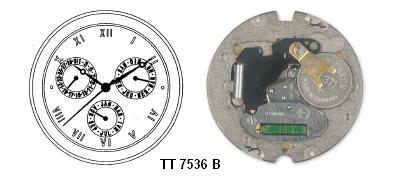

7536 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels dd MNT (X)

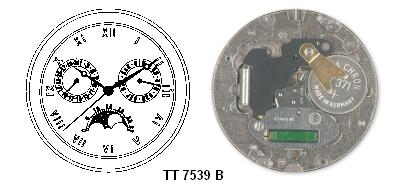

7539 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels dd MPH (X)

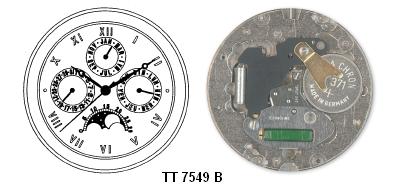

7549 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels dd MPH MNT (X)

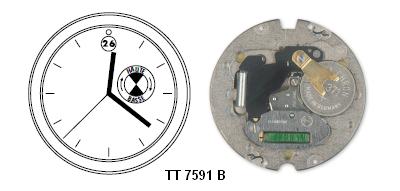

7591 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels d TID (X)

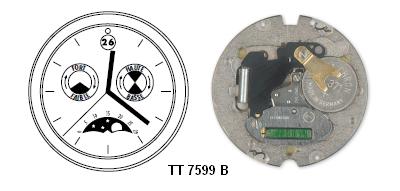

7599 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 5 jewels d MPH TID (X)

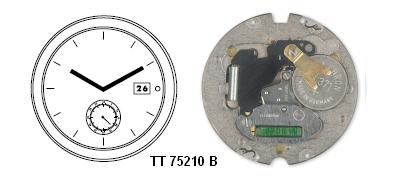

75210 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 7 jewels d ss (X)

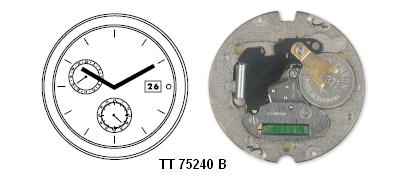

75240 11 1/2''' x = mm y = 25.60 mm h = 3.75 mm 7 jewels d ss GMT (X)

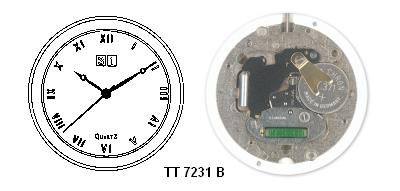

7231 13''' x = mm y = 29.00 mm h = 3.75 mm 5 jewels bd (X)
7331 13''' x = mm y = 29.00 mm h = 3.75 mm 5 jewels bd (X)

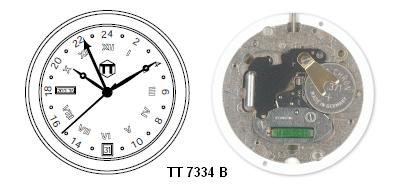

7334 13''' x = mm y = 29.00 mm h = 3.58 mm 5 jewels d GMT (X)

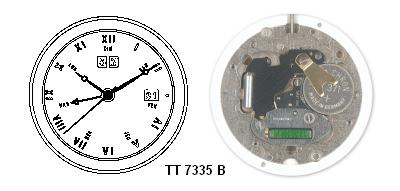

7335 13''' x = mm y = 29.00 mm h = 3.75 mm 5 jewels dd WK (X)

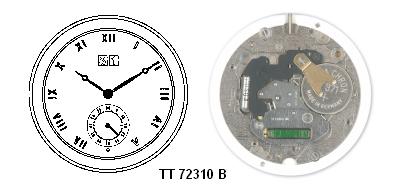

72310 13''' x = mm y = 29.00 mm h = 3.75 mm 7 jewels bd (X)
73310 13''' x = mm y = 29.00 mm h = 3.75 mm 7 jewels bd (X)

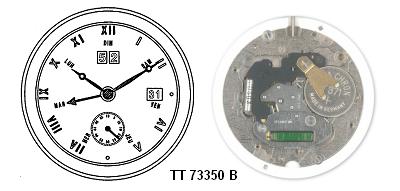

73350 13''' x = mm y = 29.00 mm h = 3.75 mm 7 jewels dd ss WK (X)
