FASHIONLINE típuscsalád / FASHIONLINE family
6 3/4´´´ x 8´´´
15.30 x 17.80
802.002
H 2.95
0 jewels
802.102
H 2.95
0 jewels
8 3/4´´´
d 19.40
803.112
H 3.65
0 jewels
803.122
H 3.65
0 jewels
10 1/2´´´
d 23.30
804.112
H 3.65
0 jewels
11 1/2´´´
d 25.60
805.112
H 3.65
0 jewels
805.122
H 3.65
0 jewels
Alarm
10 1/2´´´
d 23.30
804.192
H 4.045
0 jewel
Alarm
Chronograph
10 1/2´´´
d 23.30
G15.211
H 5.25
6 jewels
G15.261
H 5.25
6 jewels
13 3/4´´´
d 29.80
G10.211
H 5.12
4 jewels
13 3/4´´´
d 29.80
G10.711
H 5.62
4 jewels
Based on ...
ETA_01012008_thermoline.pdf
... katalógus alapján. --->
www.eta.ch
[ Vissza az ETA szerkezet-hatrozóra / Back to ETA calibre directory ]
FASHIONLINE típuscsalád / FASHIONLINE family
f
= 32 768 [Hz]
Data
-

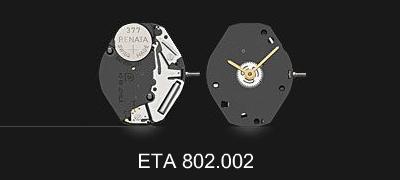

ETA 802.002
6 3/4´´´ x 8´´´
d = 15.30 mm
y = 17.80 mm
h = 2.95 mm
0 jewels

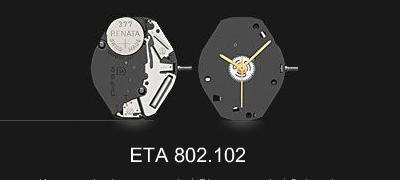

ETA 802.102
6 3/4´´´ x 8´´´
d = 15.30 mm
y = 17.80 mm
h = 2.95 mm
0 jewels

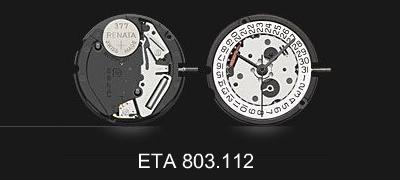

ETA 803.112
8 3/4´´´
d = 19.40 mm
h = 3.65 mm
0 jewels
date

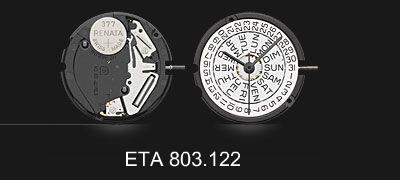

ETA 803.122
8 3/4´´´
d = 19.40 mm
h = 3.65 mm
0 jewels
dd

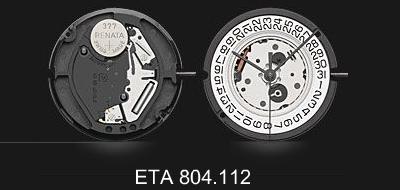

ETA 804.112
10 1/2´´´
d = 23.30 mm
h = 3.65 mm
0 jewels
date

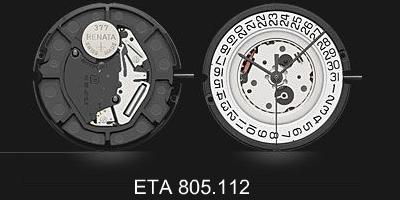

ETA 805.112
11 1/2´´´
d = 25.60 mm
h = 3.65 mm
0 jewels
date

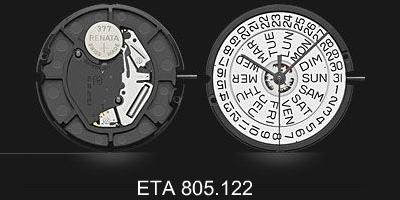

ETA 805.122
11 1/2´´´
d = 25.60 mm
h = 3.65 mm
0 jewels
dd
FASHIONLINE - ALARM
f
= 32 768 [Hz]
Data
-

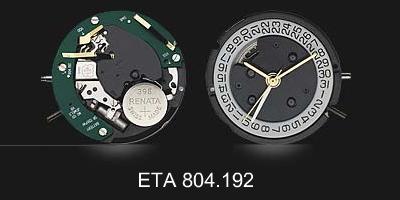

ETA 804.192
10 1/2´´´
d = 23.30 mm
h = 4.05 mm
0 jewels
ALM
FASHIONLINE - CHRONOGRAPH
f
= 32 768 [Hz]
Data
-
ETA G15.211
10 1/2´´´
d = 23.30 mm
h = 5.25 mm
6 jewels
date
CHR
1/10s
sec
min

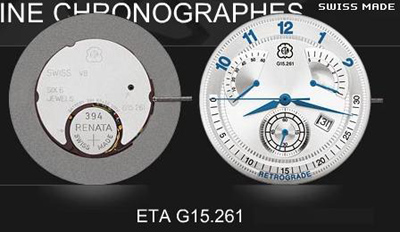

ETA G15.261
10 1/2´´´
d = 23.30 mm
h = 5.25 mm
6 jewels
date
CHR
30 sec
5 min
30 min
RET

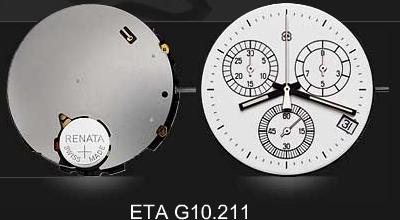

ETA G10.211
13 3/4´´´
d = 29.80 mm
h = 5.12 mm
4 jewels
date
CHR
1/10s
sec
min

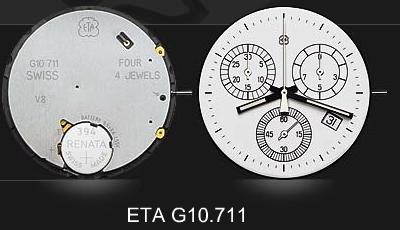

ETA G10.711
13 3/4´´´
d = 29.80 mm
h = 5.62 mm
4 jewels
date
CHR
1/10s
sec
min
Rövidítések / Acronyms
Vissza az
ETA directory
lapra / Back to
ETA directory
page.
