Szerkezet-határozó / Calibers visual directory

By Principles

Based on ETA brochures.
Displays technical drawings.
Target is to best identify actual calibres.

By Product lines

Based on www.eta.ch
Combines catalogue and on-line formats.
Target is to give easy overview of product line

AutoQuartz szerkezetek / AutoQuartz calibers

f = 32 768 [Hz]

Data	Picture
ETA 204.901 8 3/4" d = 19.40 mm h = 3.95 mm 17 jewels AUQ
ETA 204.911 8 3/4" d = 19.40 mm h = 3.95 mm 17 jewels date AUQ
ETA 205.111 11 1/2" d = 25.60 mm h = 3.95 mm 17 jewels date AUQ
ETA 205.911 11 1/2" d = 25.60 mm h = 3.95 mm 17 jewels date AUQ
ETA 205.961 11 1/2" d = 25.60 mm h = 3.95 mm 17 jewels date AUQ GMT
ETA 206.211 13 1/4" d = 30.00 mm h = 7.50 mm 53 jewels date AUQ CHR

Rövidítések / Acronyms

Hökompenzált kvarc szerkezetek / Thermocompensated Quartz calibers

f = 32 768 [Hz]

Data	Picture
ETA 251.232 13 1/4" d = 30.00 mm h = 7.00 mm 27 jewels date THC CHR 1/10s 60s 60m 12h
ETA 252.511 11 1/2" d = 25.60 mm h = 3.00 mm 11 jewels date THC PPC
ETA 252.611 11 1/2" d = 25.60 mm h = 3.00 mm 11 jewels date THC PPC
ETA 255.471 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL
ETA 255.472 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL
ETA 255.511 10 1/2" d = 23.30 mm h = 1.95 mm 6 jewels date THC EOL
ETA 255.561 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL HOR
ETA 256.513 8 1/4" d = 18.20 mm h = 1.95 mm 9 jewels date THC EOL
ETA 256.563 8 1/4" d = 18.20 mm h = 2.45 mm 9 jewels date THC EOL HOR
ETA 955.452 10 1/2" d = 23.30 mm h = 2.50 mm 7 jewels date THC
ETA 955.652 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date THC PPC
ETA 956.152 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels date THC
ETA 956.652 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date THC

Rövidítések / Acronyms

Analóg-digitális kvarc szerkezetek / Analogue-digital calibers

f = 32 768 [Hz]

Data	Picture
ETA 988.332 9 3/4" * 11 1/2" d = 22.00 mm y = 25.50 mm h = 3.25 mm 7 jewels date HYB 1/100s 60s 30m 12h 10mem
ETA 958.333 9" * 10 1/2" d = 20.50 mm y = 20.00 mm h = 2.80 mm 7 jewels date HYB D TM T2 CHR ALM
ETA 988.333 9 3/4 " * 11 1/2" d = 22.00 mm y = 25.50 mm h = 3.25 mm 7 jewels date HYB D TM T2 CHR ALM EOL
ETA 988.432 11" * 11 1/2" d = 24.80 mm y = 25.50 mm h = 3.25 mm 7 jewels date HYB D TM T2 CHR ALM EOL
ETA 989.331 10 1/2" d = 23.30 mm h = 4.01 mm 7 jewels date HYB D TM T2 CHR ALM EOL
ETA 989.431 8 1/4" * 9" d = 18.50 mm y = 20.50 mm h = 3.85 mm 7 jewels date HYB D TM T2 CHR ALM EOL
ETA E20.321 13 1/4" * 9" d = 30.00 mm h = 6.95 mm 7 jewels date HYB D TM T1 T2 CHR ALM PPC EOL
ETA E20.341 13 1/4" d = 30.00 mm h = 6.95 mm 9 jewels date THC HYB D TM T1 T2 CHR ALM PPC EOL

Rövidítések / Acronyms

Kaliberek rajzai kaliberszám szerint / Drawings of Calibers by calibre type

Data	Picture
ETA 204.901 8 3/4" d = 19.40 mm h = 3.95 mm 17 jewels AUQ
ETA 204.911 8 3/4" d = 19.40 mm h = 3.95 mm 17 jewels date AUQ
ETA 205.111 11 1/2" d = 25.60 mm h = 3.95 mm 17 jewels date AUQ
ETA 205.911 11 1/2" d = 25.60 mm h = 3.95 mm 17 jewels date AUQ
ETA 205.961 11 1/2" d = 25.60 mm h = 3.95 mm 17 jewels date AUQ GMT

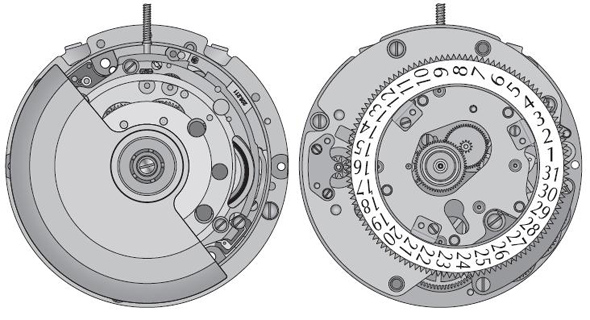

ETA 206.211 13 1/4" d = 30.00 mm h = 7.50 mm 53 jewels date AUQ CHR

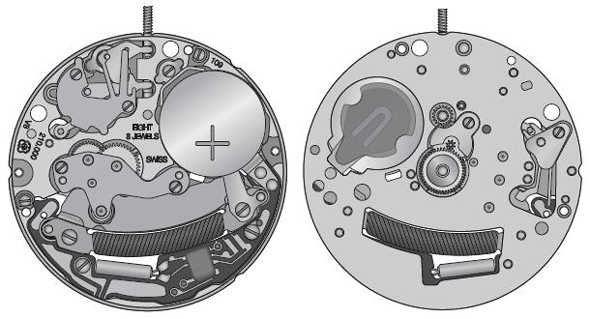

ETA 210.001 9" d = 20.00 mm h = 0.98 mm 8 jewels
ETA 210.011 9" d = 20.40 mm h = 1.50 mm 8 jewels
ETA 251.232 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date CHR 1/10s 60s 60m 12h
ETA 251.233 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date THC CHR 1/10s 60s 60m 12h

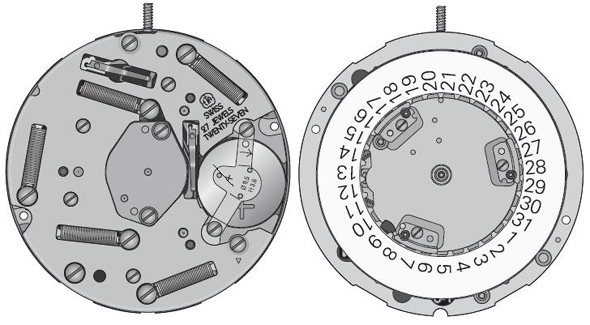

ETA 251.242 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date ALM CHR 1/10s 60s 60m 12h

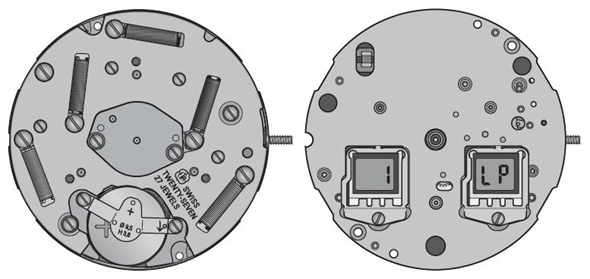

ETA 251.252 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date ALM CHR 1/100s 60s 30m 12h 10mem

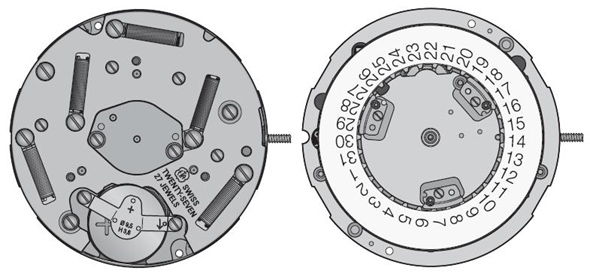

ETA 251.262 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date ALM CHR 1/10s 60s 60m 12h
ETA 251.265 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date ALM CHR 60s 60m 24h

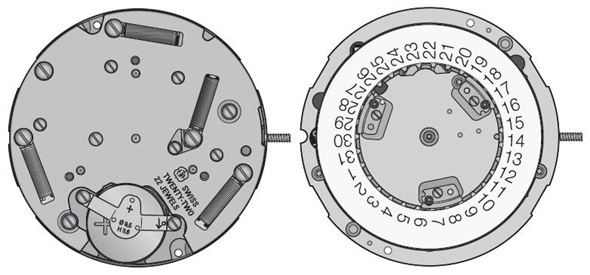

ETA 251.272 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date ALM CHR 1/10s 60s 30m

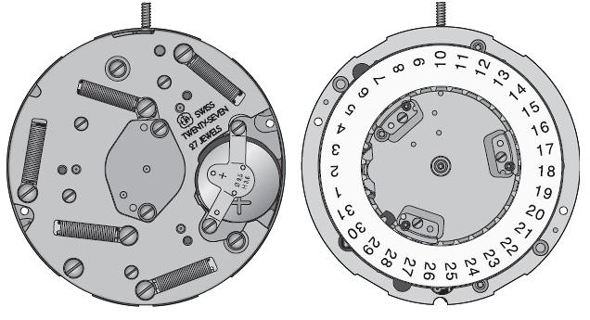

ETA 251.292 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date CHR 1/10s 60s 30m RAT

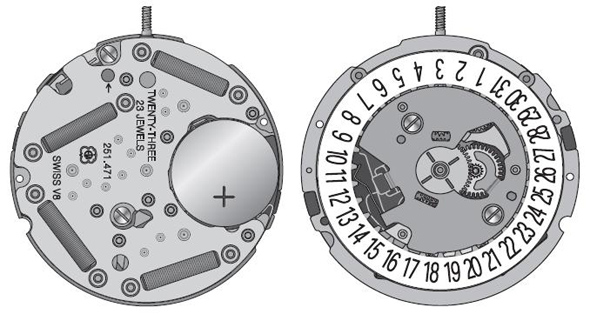

ETA 251.471 10 1/2" d = 23.30 mm h = 4.70 mm 23 jewels date CHR 1/10s 60s 60m
ETA 252.511 11 1/2" d = 25.60 mm h = 3.00 mm 11 jewels date THC PPC
ETA 252.611 11 1/2" d = 25.60 mm h = 3.00 mm 11 jewels date THC

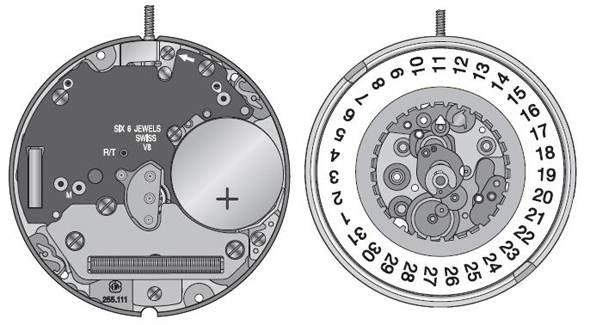

ETA 255.111 11 1/2" d = 25.60 mm h = 1.95 mm 6 jewels date EOL

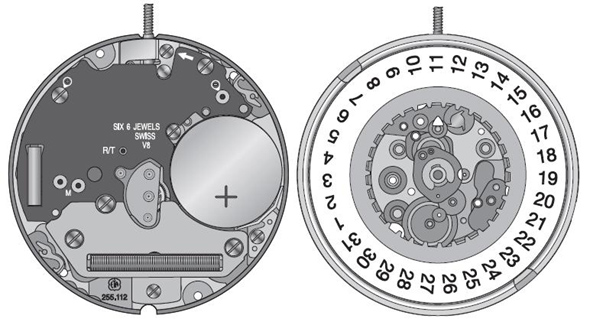

ETA 255.112 11 1/2" d = 25.60 mm h = 1.95 mm 6 jewels date EOL SST

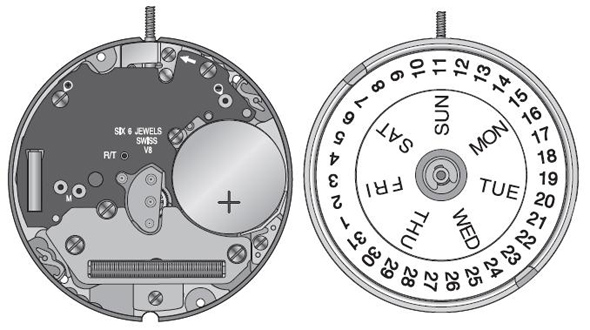

ETA 255.121 11 1/2" d = 25.60 mm h = 2.45 mm 6 jewels dd EOL SST

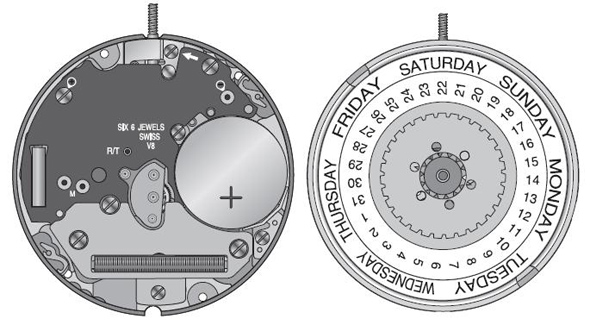

ETA 255.122 11 1/2" d = 25.60 mm h = 2.45 mm 6 jewels dd EOL SST
ETA 255.411 10 1/2" d = 23.30 mm h = 1.95 mm 6 jewels date EOL SST
ETA 255.412 10 1/2" d = 23.30 mm h = 1.95 mm 6 jewels date EOL SST
ETA 255.421 11 1/2" d = 25.60 mm h = 1.95 mm 6 jewels date EOL SST

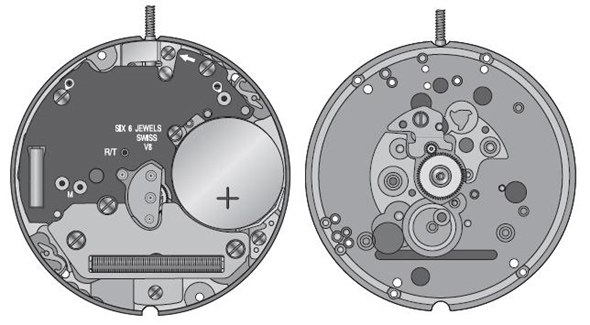

ETA 255.431 11 1/2" d = 25.60 mm h = 1.95 mm 6 jewels EOL

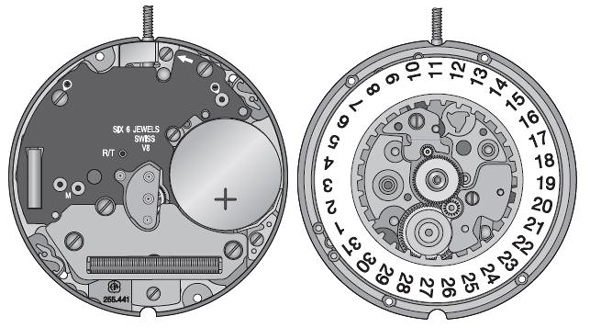

ETA 255.441 10 1/2" d = 23.30 mm h = 1.95 mm 6 jewels date EOL

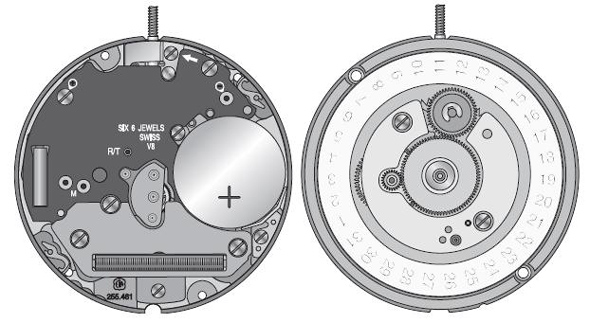

ETA 255.461 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date
ETA 255.462 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date EOL SST T2
ETA 255.471 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL
ETA 255.472 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL
ETA 255.511 10 1/2" d = 23.30 mm h = 1.95 mm 6 jewels date THC EOL
ETA 255.561 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL HOR

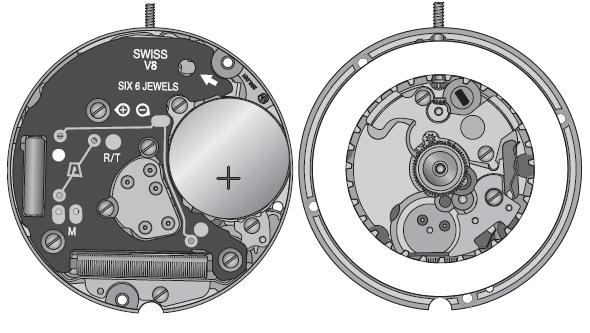

ETA 256.031 8 1/4" d = 18.20 mm h = 1.95 mm 6 jewels LL

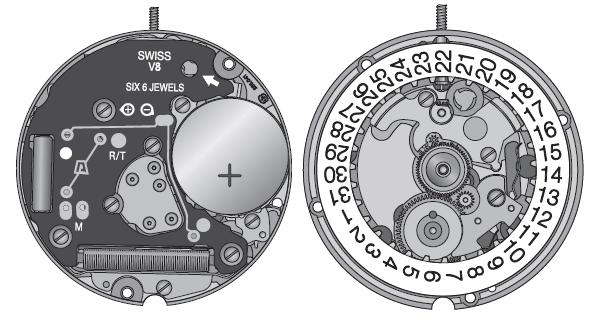

ETA 256.041 8 1/4" d = 18.20 mm h = 1.95 mm 6 jewels date LL
ETA 256.101 8 1/4" d = 18.20 mm h = 1.95 mm 9 jewels EOL

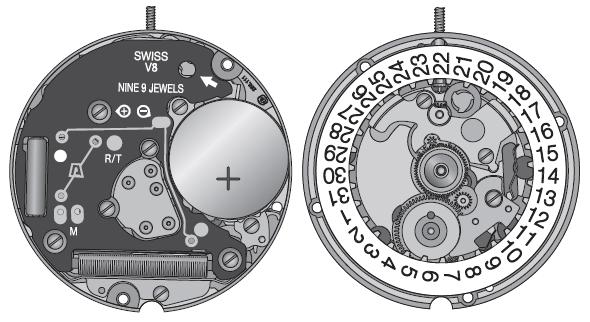

ETA 256.111 8 1/4" d = 18.20 mm h = 1.95 mm 9 jewels date EOL SST
ETA 256.461 8 1/4" d = 18.20 mm h = 2.45 mm 9 jewels date EOL SST T2
ETA 256.513 8 1/4" d = 18.20 mm h = 1.95 mm 9 jewels date EOL
ETA 256.563 8 1/4" d = 18.20 mm h = 2.45 mm 9 jewels date EOL HOR

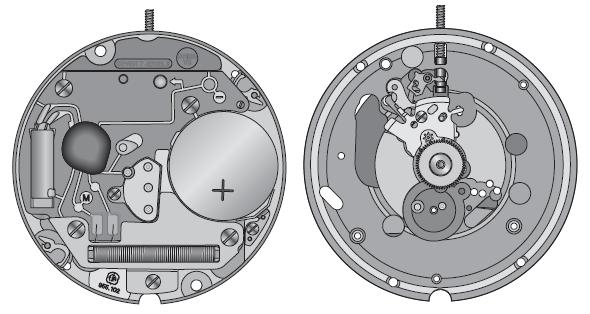

ETA 955.102 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels EOL SST
ETA 955.112 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date EOL SST
ETA 955.114 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date
ETA 955.422 10 1/2" d = 23.30 mm h = 3.00 mm 7 jewels dd EOL SST

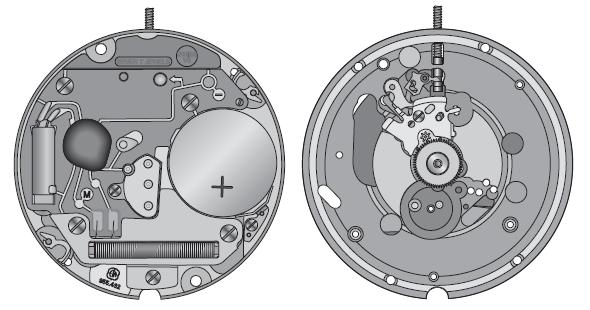

ETA 955.432 10 1/2" d = 23.30 mm h = 2.50 mm 7 jewels LL SST
ETA 955.452 10 1/2" d = 23.30 mm h = 2.50 mm 7 jewels date THC EOL
ETA 955.612 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date
ETA 955.652 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date THC PPC
ETA 955.812 11 1/2" d = 25.60 mm h = 2.80 mm 11 jewels date SOL

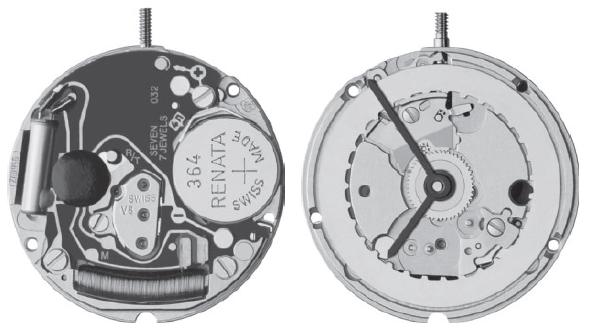

ETA 956.032 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels LL
ETA 956.042 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels date LL
ETA 956.102 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels date EOL

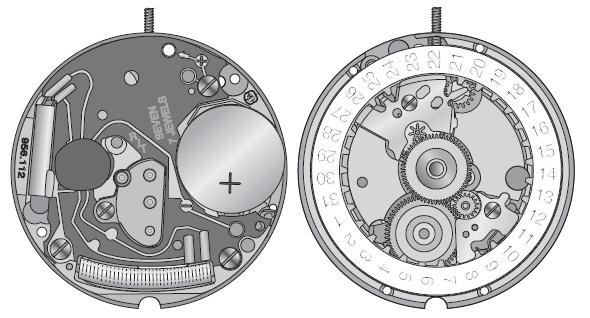

ETA 956.112 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels date EOL SST

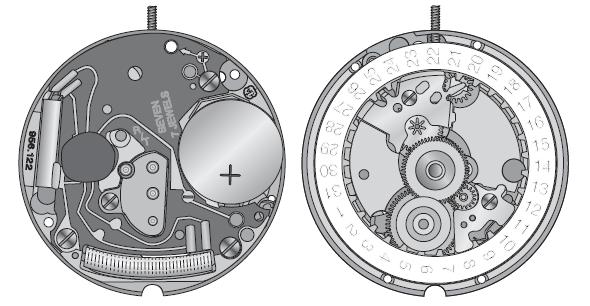

ETA 956.122 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels dd EOL
ETA 956.152 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels date THC
ETA 956.402 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date EOL SST
ETA 956.412 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date EOL COR

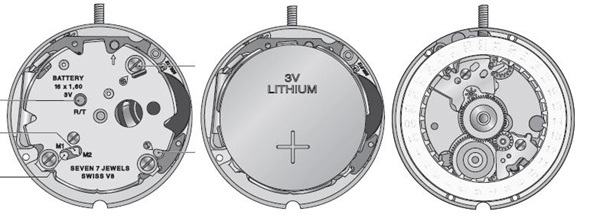

ETA 956.612 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date
ETA 956.652 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date THC EOL
ETA 958.333 9" * 10 1/2" d = 20.50 mm y = 20.00 mm h = 2.80 mm 7 jewels HYB D TM T2 CHR ALM
ETA 988.332 9 3/4" * 11 1/2" d = 22.00 mm y = 25.50 mm h = 3.25 mm 7 jewels HYB D TM T1 CHR ALM EOL

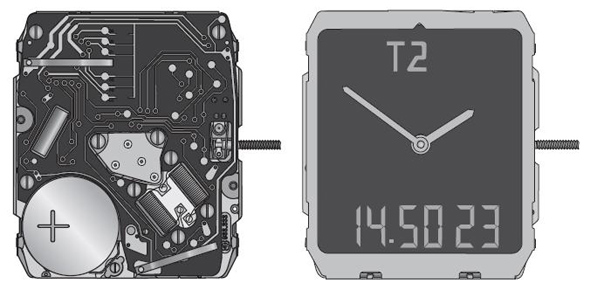

ETA 988.333 9 3/4 " * 11 1/2" d = 22.00 mm y = 25.50 mm h = 3.25 mm 7 jewels HYB D TM T2 CHR ALM EOL
ETA 988.432 11" * 11 1/2" d = 24.80 mm y = 25.50 mm h = 3.25 mm 7 jewels HYB D TM T2 CHR ALM EOL

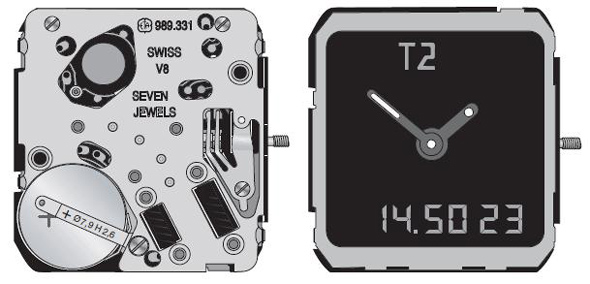

ETA 989.331 10 1/2" d = 23.30 mm h = 4.01 mm 7 jewels HYB D TM T2 CHR ALM EOL

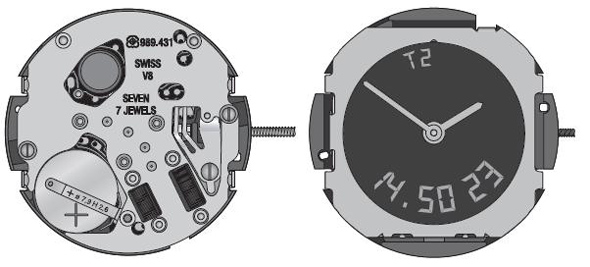

ETA 989.431 8 1/4" * 9" d = 18.50 mm y = 20.50 mm h = 3.85 mm 7 jewels HYB D TM T2 CHR ALM EOL

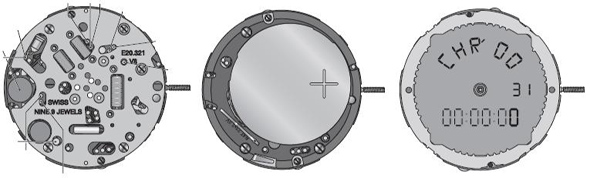

ETA E20.321 13 1/4" * 9" d = 30.00 mm h = 6.95 mm 7 jewels HYB D TM T1 T2 CHR ALM PPC EOL
ETA E20.341 13 1/4" d = 30.00 mm h = 6.95 mm 9 jewels date THC HYB D TM T1 T2 CHR ALM PPC EOL

Last update: 2010-Aug-8
