FLATLINE típuscsalád / FLATLINE family

4 7/8´´ d 11.00         E01.001 H 2.50 5 jewels E01.701 H 2.50 5 jewels                         5 1/2´´ x 6 3/4´´ 13 x 15.15 E03.001 H 1.35 6 jewels                                         5 1/2´´ x 6 3/4´´ 13 x 15.15 976.001 H 1.95 6 jewels                                         5 1/2 x 8´´ 13 x 18.20 282.001 H 1.20 13 jewels                                         8 1/4´´ d 18.20         256.031 H 1.95 6 jewels Long life         256.041 H 1.95 6 jewels Long life 256.111 H 1.95 9 jewels E.O.L 256.461 H 2.45 9 jewels E.O.L 9´´ d 20.00         210.001 H 0.98 8 jewels                                 10 1/2´´ d 23.30                         255.441 H 1.95 6 jewels Long life 255.412 H 1.95 9 jewels E.O.L 255.462 H 2.45 6 jewels E.O.L 11 1/2´´ d 25.60                                 255.112 H 1.95 6 jewels E.O.L

Chronograph 9 3/4´´x 11 1/2´´ 22.00 x 25.50 988.333 H 3.25 7 Jewels Multifunct. Perpet.                         11´´x 11 1/2´´ 24.80 x 25.50         988.432 H 3.25 7 Jewels Multifunct. Perpet.                 13 1/4´´ d 30.00                 251.262 H 5.00 27 Jewels E20.321 H 6.90 9 Jewels Multifunct.

• Based on ... ETA_01012008_thermoline.pdf ... katalógus alapján. --->  www.eta.ch
• [ Vissza az ETA szerkezet-hatrozóra / Back to ETA calibre directory ]

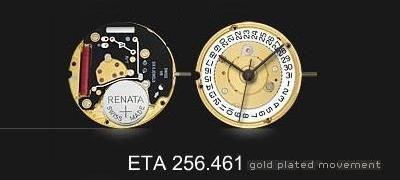

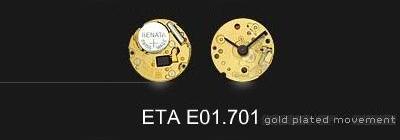

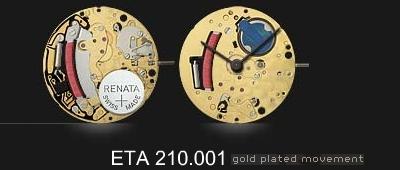

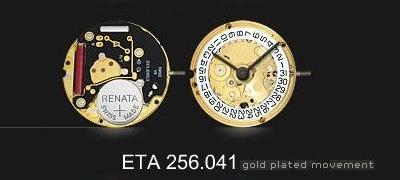

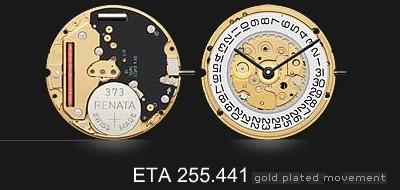

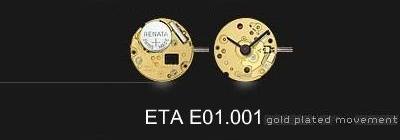

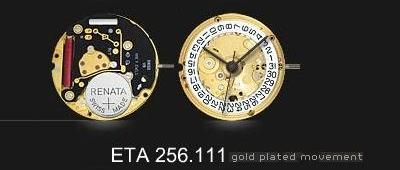

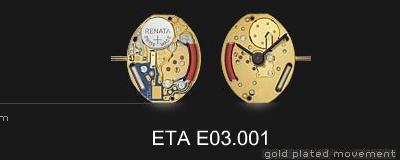

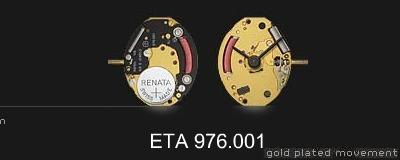

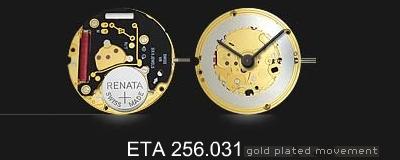

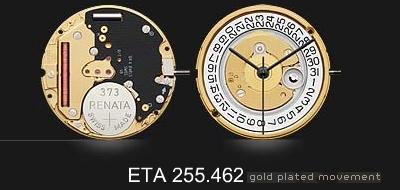

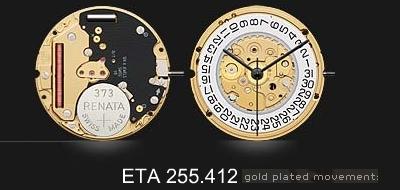

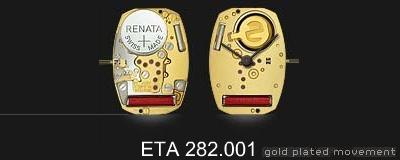

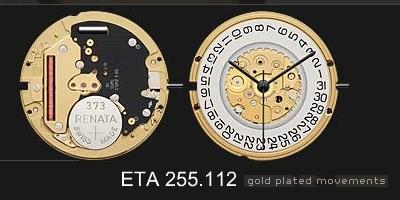

Data Picture -   ETA E01.001 4 7/8´´ d = 11.00 mm h = 2.50 mm 5 jewels   ETA E01.701 4 7/8´´ d = 11.00 mm h = 2.50 mm 5 jewels   ETA E03.001 5 1/2´´ x 6 3/4´´ d = 13.00 mm y = 15.15 mm h = 1.35 mm 9 jewels   ETA 976.001 5 1/2´´ x 6 3/4´´ d = 13.00 mm y = 15.15 mm h = 1.35 mm 9 jewels   ETA 282.001 5 1/2´´ x 8´´ d = 13.00 mm y = 18.20 mm h = 1.20 mm 13 jewels   ETA 256.031 8 1/4´´ d = 18.20 mm h = 1.95 mm 6 jewels LL   ETA 256.041 8 1/4´´ d = 18.20 mm h = 1.95 mm 6 jewels date LL   ETA 256.111 8 1/4´´ d = 18.20 mm h = 1.95 mm 9 jewels date EOL   ETA 256.461 8 1/4´´ d = 18.20 mm h = 2.45 mm 9 jewels date GMT   ETA 210.001 9´´ d = 20.00 mm h = 0.98 mm 8 jewels LL   ETA 255.441 10 1/2´´ d = 23.30 mm h = 1.95 mm 6 jewels date   ETA 255.412 10 1/2´´ d = 23.30 mm h = 1.95 mm 9 jewels date EOL   ETA 255.462 10 1/2´´ d = 23.30 mm h = 2.45 mm 9 jewels date GMT   ETA 255.112 11 1/2´´ d = 25.60 mm h = 1.95 mm 6 jewels date EOL SST

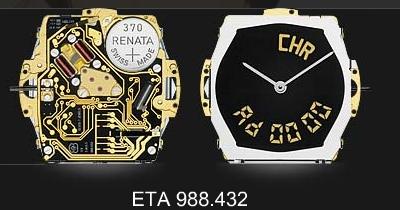

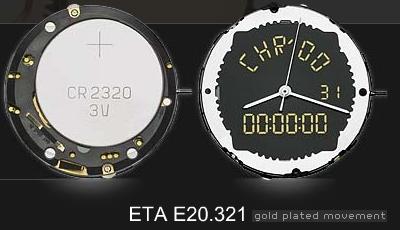

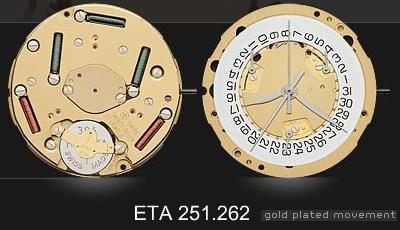

Data Picture -   ETA 988.333 9 3/4´´x 11 1/2´´ d = 22.00 mm y = 25.50 mm h = 3.25 mm 7 jewels HYB D TM T2 CHR ALM EOL   ETA 988.432 11´´x 11 1/2´´ d = 24.80 mm y = 25.50 mm h = 3.25 mm 7 jewels HYB D TM T2 CHR ALM EOL   ETA 251.262 13 1/4´´ d = 30.00 mm h = 5.00 mm 27 jewels date CHR 1/10s sec min   ETA E20.321 13 1/4´´ d = 30.00 mm h = 6.90 mm 9 jewels HYB D TM T1 T2 CHR ALM PPT EOL

• Rövidítések / Acronyms
