NORMFLATLINE típuscsalád / NORMFLATLINE family

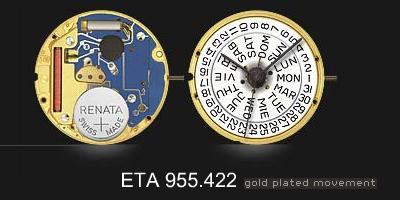

3 3/4´´ x 6 3/4´´ 9 x 15.15 280.002 H 1.80 5 jewels                                                                 5 1/2´´´ x 6 3/4´´´ 13 x 15.15         901.001 H 2.20 3 jewels         980.153 H 2.20 11 jewels E.O.L.                                         5 1/2´´´ x 6 3/4´´´ 13 x 15.15                 980.106 H 2.20 7 jewels E.O.L. 980.163 H 2.20 15 jewels E.O.L.                                         6 3/4´´´ x 8´´´ 15.30 x 17.80         902.002 H 2.35 4 jewels 902.101 H 2.35 4 jewels E.O.L. 902.501 H 2.90 4 jewels E.O.L.                                         7 3/4´´´ d 17.20                                 956.032 H 2.50 7 jewels E.O.L. 956.102 H 2.50 7 jewels E.O.L. 956.112 H 2.50 7 jewels E.O.L.                 8 3/4´´´ d 19.40                                         956.402 H 2.50 7 jewels E.O.L. 956.412 H 2.50 7 jewels E.O.L.                 8 3/4´´´ d 19.40                                                 956.612 H 4.50 7 jewels E.O.L. Lithium                 10 1/2´´´ d 23.30                                 955.432 H 2.50 7 jewels Long life 955.402 H 2.50 7 jewels E.O.L. 955.412 H 2.50 7 jewels E.O.L. 955.422 H 3.00 7 jewels E.O.L.         11 1/2´´´ d 25.60                                         955.102 H 2.50 7 jewels E.O.L. 955.112 H 2.50 7 jewels E.O.L. 955.122 H 3.00 7 jewels E.O.L. 955.132 H 3.00 7 jewels E.O.L.

Chronograph 10 1/2´´´ d 23.30 251.471 H 4.70 23 Jewels 13 1/4´´´ d 30.00 251.272 H 4.70 23 Jewels

• Based on ... ETA_01012008_thermoline.pdf ... katalógus alapján. --->  www.eta.ch
• [ Vissza az ETA szerkezet-hatrozóra / Back to ETA calibre directory ]

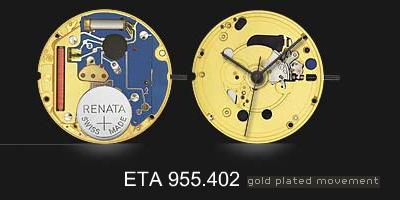

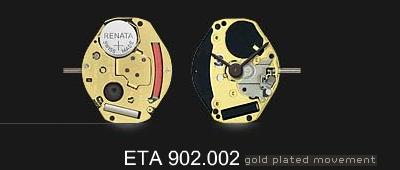

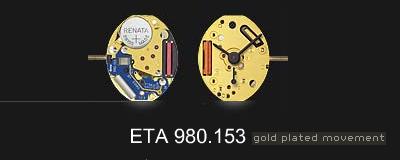

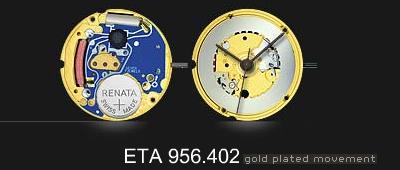

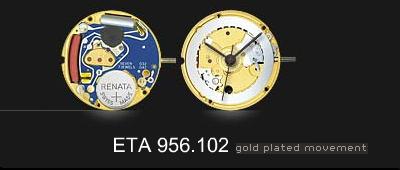

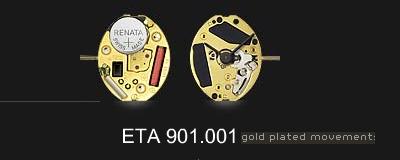

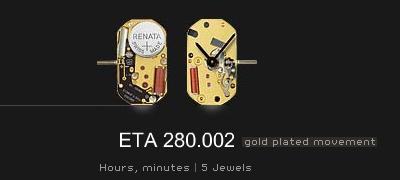

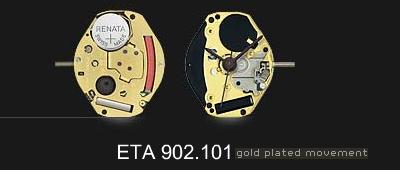

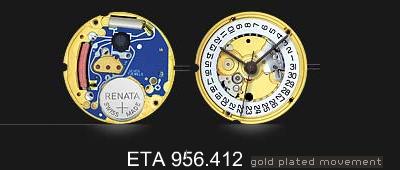

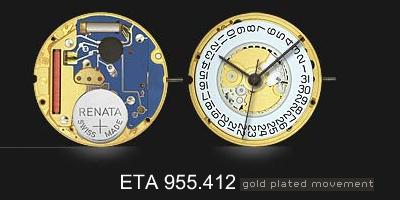

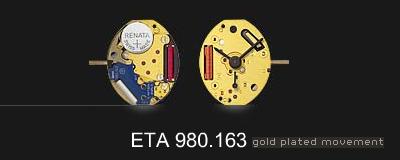

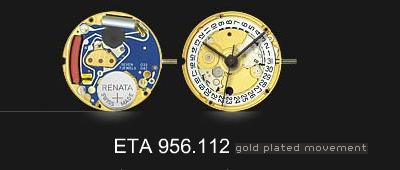

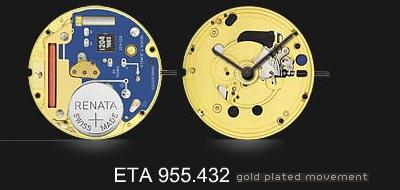

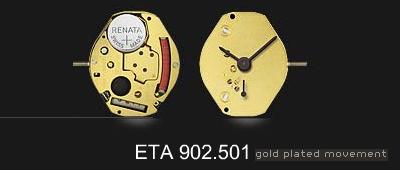

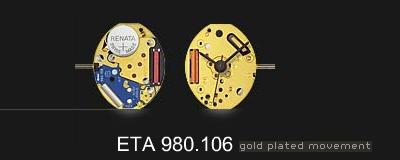

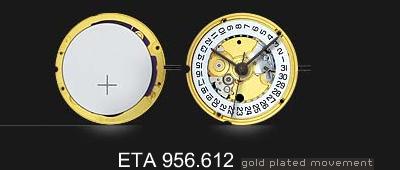

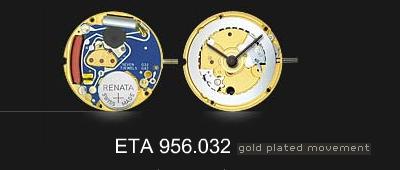

Data Picture -   ETA 280.002 3 3/4´´ x 6 3/4´´ d = 9.00 mm y = 15.15 mm h = 1.80 mm 5 jewels   ETA 901.001 5 1/2´´´ x 6 3/4´´´ d = 13.00 mm y = 15.15 mm h = 2.00 mm 3 jewels   ETA 980.153 5 1/2´´´ x 6 3/4´´´ d = 13.00 mm y = 15.15 mm h = 1.35 mm 11 jewels EOL   ETA 980.106 5 1/2´´´ x 6 3/4´´´ d = 13.00 mm y = 15.15 mm h = 2.20 mm 7 jewels EOL   ETA 980.163 5 1/2´´´ x 6 3/4´´´ d = 13.00 mm y = 15.15 mm h = 2.20 mm 15 jewels EOL   ETA 902.002 6 3/4´´´ x 8´´´ d = 15.30 mm y = 17.80 mm h = 2.35 mm 4 jewels   ETA 902.101 6 3/4´´´ x 8´´´ d = 15.30 mm y = 17.80 mm h = 2.35 mm 4 jewels EOL   ETA 902.501 5 1/2´´´ x 6 3/4´´´ d = 13.00 mm y = 15.15 mm h = 2.90 mm 4 jewels EOL   ETA 956.032 7 3/4´´´ d = 17.20 mm h = 2.50 mm 7 jewels EOL   ETA 956.102 7 3/4´´´ d = 17.20 mm h = 2.50 mm 7 jewels EOL   ETA 956.112 7 3/4´´´ d = 17.20 mm h = 2.50 mm 7 jewels date EOL   ETA 956.402 8 3/4´´´ d = 19.40 mm h = 2.50 mm 7 jewels EOL   ETA 956.412 8 3/4´´´ d = 19.40 mm h = 2.50 mm 7 jewels date EOL   ETA 956.612 8 3/4´´´ d = 19.40 mm h = 4.50 mm 7 jewels date EOL   ETA 955.432 10 1/2´´´ d = 23.30 mm h = 2.50 mm 7 jewels LL   ETA 955.402 10 1/2´´´ d = 23.30 mm h = 2.50 mm 7 jewels EOL   ETA 955.412 10 1/2´´´ d = 23.30 mm h = 2.50 mm 7 jewels date EOL   ETA 955.422 10 1/2´´´ d = 23.30 mm h = 2.50 mm 7 jewels dd EOL   ETA 955.102 11 1/2´´´ d = 25.60 mm h = 2.50 mm 7 jewels EOL   ETA 955.112 11 1/2´´´ d = 25.60 mm h = 2.50 mm 7 jewels date EOL   ETA 955.122 11 1/2´´´ d = 25.60 mm h = 2.50 mm 7 jewels dd EOL   ETA 955.132 11 1/2´´´ d = 25.60 mm h = 3.00 mm 7 jewels dwd EOL

• Rövidítések / Acronyms

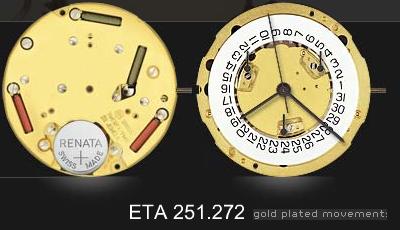

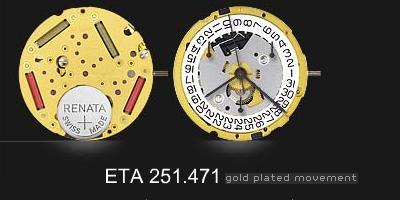

Data Picture -   ETA 251.471 10 1/2´´´ d = 23.30 mm h = 4.70 mm 23 jewels date CHR 1/10s sec min.   ETA 251.272 13 1/4´´´ d = 30.00 mm h = 4.70 mm 23 jewels date CHR 1/10s sec min.

• Rövidítések / Acronyms
