THERMOLINE típuscsalád / THERMOLINE family

8 3/4´´´ d 19.40 956.652 H 2.50 7 Jewels E.O.L. Lithium thermo 10 1/2´´´ d 23.30 955.452 H 2.50 7 Jewels E.O.L. thermo 11 1/2´´´ d 25.60 955.652 H 2.50 7 Jewels E.O.L. Lithium thermo Chronograph 9 3/4´´´x 11 1/2´´´ 22.00 x 25.50 988.352 H 3.85 7 Jewels Multifunct.         13 1/4´´´ d 30.00         251.233 H 5.00 27 Jewels

• Based on ... ETA_01012008_thermoline.pdf ... katalógus alapján. --->  www.eta.ch
• Már nem gyártott szerkezetek / Calibres no more in production.
• [ Vissza az ETA szerkezet-hatrozóra / Back to ETA calibre directory ]

• Click on he calibre for details / Kattints a szerkezetre a részletekért.

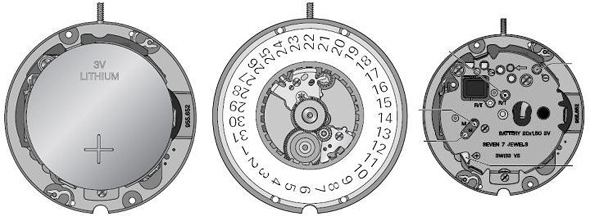

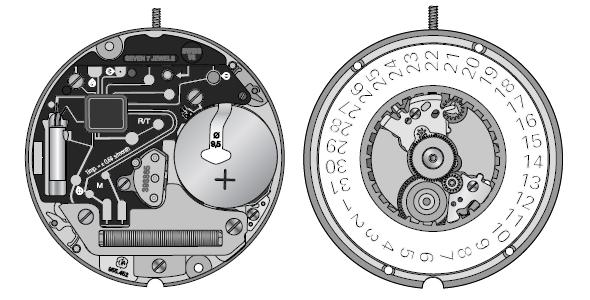

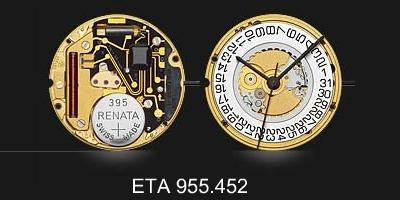

Data Picture -   ETA 956.652    (...) 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date THC   ETA 955.452    (...) 10 1/2" d = 23.30 mm h = 2.50 mm 7 jewels date THC   ETA 955.652    (...) 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date THC PPT   ETA 988.352      9 3/4" * 11 1/2" d = 22.00 mm y = 25.50 mm h = 3.85 mm 7 jewels THC HYB D TM T2 CHR ALM EOL   ETA 251.233    (...) 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date THC CHR 1/10s 60s 60m 12h

• Rövidítések / Acronyms

Data Picture   ETA 956.652 8 3/4" d = 19.40 mm h = 2.50 mm 7 jewels date THC   ETA 955.452 10 1/2" d = 23.30 mm h = 2.50 mm 7 jewels date THC   ETA 955.652 11 1/2" d = 25.60 mm h = 2.50 mm 7 jewels date THC PPT   ETA 251.233 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date THC CHR 1/10s 60s 60m 12h

• Rövidítések / Acronyms

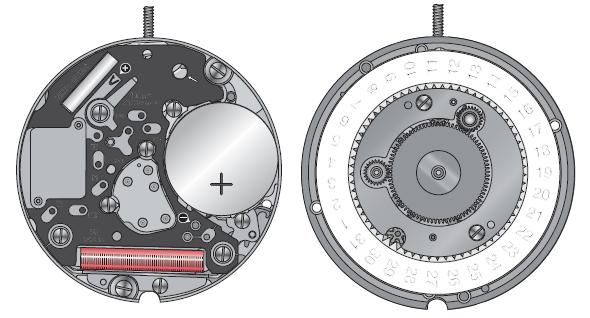

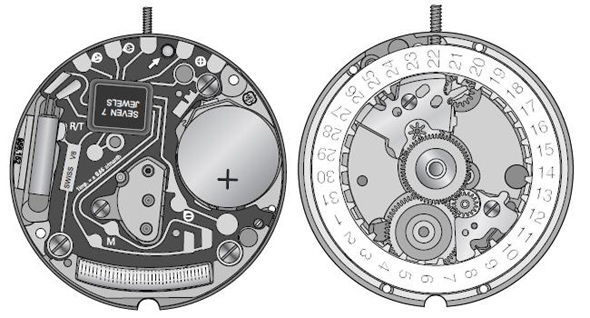

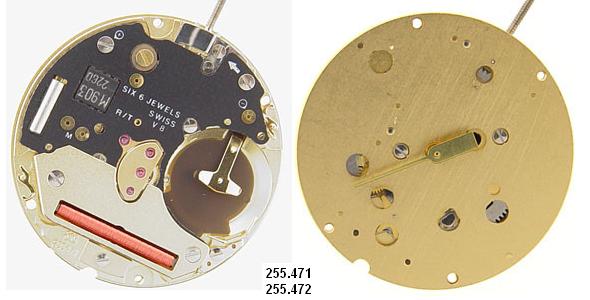

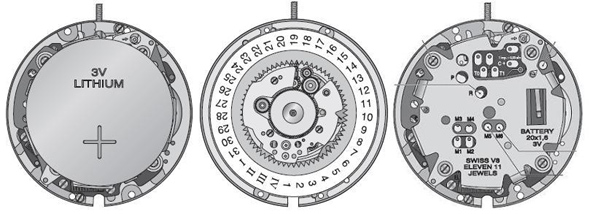

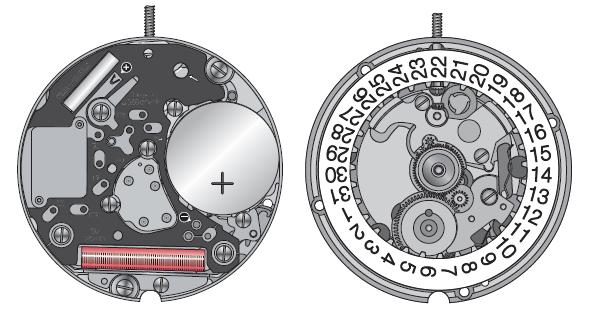

Data Picture   ETA 956.152 7 3/4" d = 17.20 mm h = 2.50 mm 7 jewels date THC   ETA 256.513 8 1/4" d = 18.20 mm h = 1.95 mm 9 jewels date THC EOL   ETA 256.563 8 1/4" d = 18.20 mm h = 2.45 mm 9 jewels date THC EOL HOR   ETA 255.471 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL   ETA 255.472 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL   ETA 255.511 10 1/2" d = 23.30 mm h = 1.95 mm 6 jewels date THC EOL   ETA 255.561 10 1/2" d = 23.30 mm h = 2.45 mm 6 jewels date THC EOL HOR   ETA 252.511 11 1/2" d = 25.60 mm h = 3.00 mm 11 jewels date THC PPC   ETA 252.611 11 1/2" d = 25.60 mm h = 3.00 mm 11 jewels date THC PPC   ETA 251.232 13 1/4" d = 30.00 mm h = 5.00 mm 27 jewels date THC CHR 1/10s 60s 60m 12h   ETA E20.341 13 1/4" d = 30.00 mm h = 6.95 mm 9 jewels date THC HYB D TM T1 T2 CHR ALM PPC EOL

• Rövidítések / Acronyms
• Vissza az ETA directory lapra / Back to ETA directory page.
