ISASLENDER típuscsalád / ISASLENDER family

f = 32 768 [Hz]

Data	Picture	-

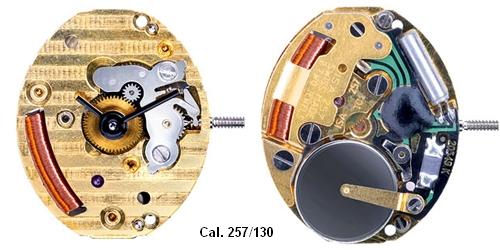

257-130 5½ x 6¾''' d = 13.00 mm h = 2.50 mm jewels: 2 Hands: 2 Swiss Made

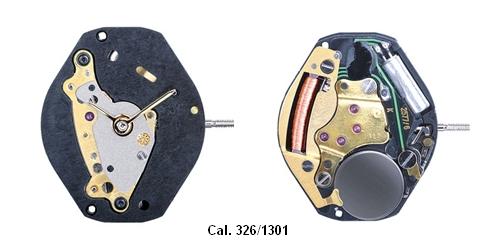

326-1301 6¾ x 8''' d = 15.30 mm h = 2.50 mm jewels: 5 Hands: 2 Swiss Made
K62-132 6¾ x 8''' d = 15.30 mm h = 2.85 mm jewels: 0 Hands: 2 Swiss Made ETS
336-101 6¾ x 8''' d = 15.30 mm h = 2.90 mm jewels: 5 Hands: 3 Swiss Made EOL

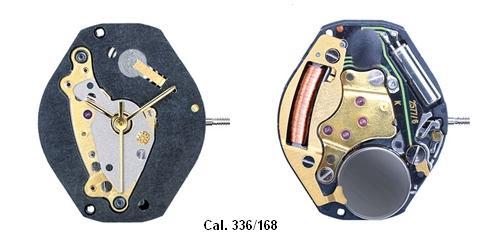

336-168 6¾ x 8''' d = 15.30 mm h = 2.90 mm jewels: 5 Hands: 3 Swiss Made EOL

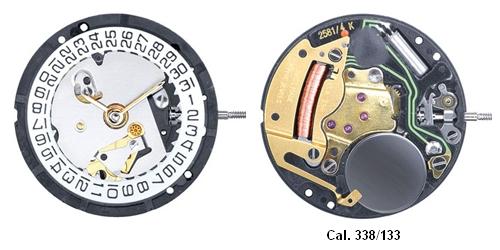

338-133 8¾''' d = 19.40 mm h = 2.50 mm jewels: 5 Hands: 2 d Swiss Made

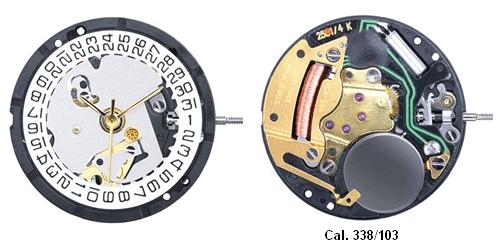

338-103 8¾''' d = 19.40 mm h = 2.50 mm jewels: 5 Hands: 3 d Swiss Made EOL

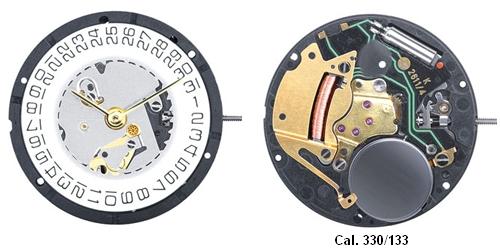

330-133 10½''' d = 23.30 mm h = 2.50 mm jewels: 5 Hands: 2 d Swiss Made

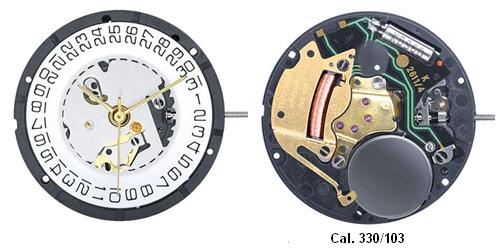

330-103 10½''' d = 23.30 mm h = 2.50 mm jewels: 5 Hands: 3 d Swiss Made EOL

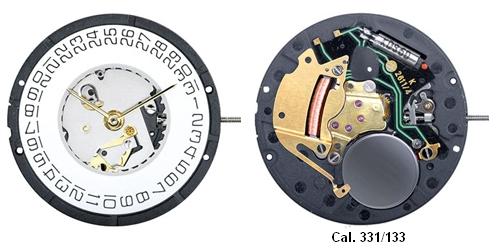

331-133 11½''' d = 25.60 mm h = 2.50 mm jewels: 5 Hands: 2 d Swiss Made EOL

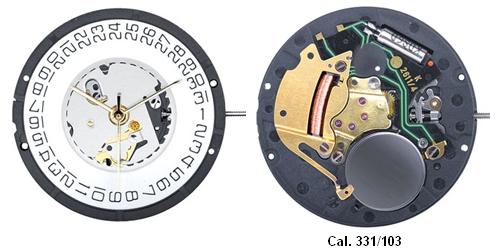

331-103 11½''' d = 25.60 mm h = 2.50 mm jewels: 5 Hands: 3 d Swiss Made EOL
