MASTERTECH típuscsalád / MASTERTECH family

6000 series - Date & Big Date movements

SWISS MADE SWISS PARTS * 11½''' 25.60mm
DATE	6003.B 3.3 mm	6004.D 2.5 mm
BIG DATE	6003.D * 2.5 mm	6004.B * 3.3 mm	6203.B * 3.3 mm

7000 series - Date & Big Date Multicunctions

SWISS MADE 15''' 33.80mm
BIG DATE Day retrograde	7003.L 5.6 mm	7003.N 5.6 mm	7004.N 5.6 mm	7004.P 5.6 mm
BIG DATE					7003.B 5.6 mm	7004.B 5.6 mm

8000 series - Chronograph & Retrograde

SWISS MADE 15''' 33.80mm
BIG DATE Chronograph	8040.B 5.6 mm	8040.N 5.6 mm

MASTERTECH kvarc szerkezetek / quartz calibers

f = 32 768 [Hz]

Data	Picture	-

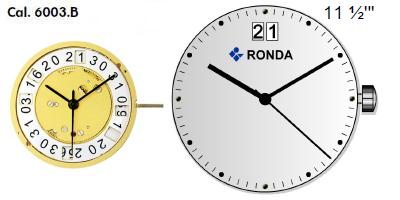

6003.B 11½" d = 25.60 mm h = 3.30 mm 4 jewels bd Swiss Made
6003.B 11½" d = 25.60 mm h = 3.30 mm 1 jewels bd Swiss Parts

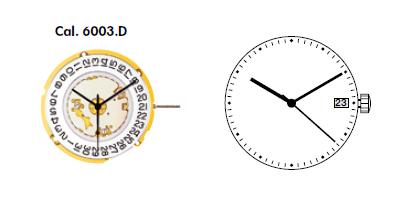

6003.D 11½" d = 25.60 mm h = 2.50 mm 4 jewels Swiss Made

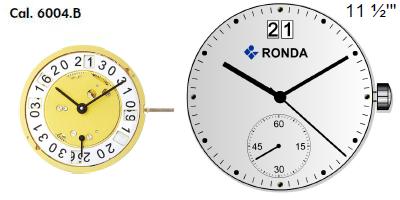

6004.B 11½" d = 25.60 mm h = 3.30 mm 5 jewels bd Swiss Made
6004.B 11½" d = 25.60 mm h = 3.30 mm 1 jewels bd Swiss Parts

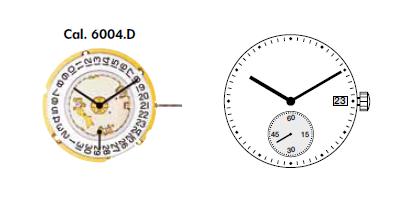

6004.D 11½" d = 25.60 mm h = 2.50 mm 5 jewels Swiss Made

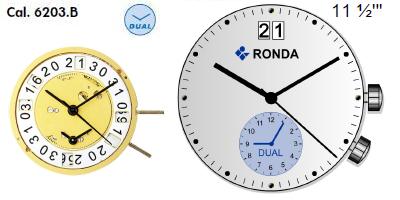

6203.B 11½" d = 25.60 mm h = 3.30 mm 5 jewels bd GMT Swiss Made
6203.B 11½" d = 25.60 mm h = 3.30 mm 1 jewels bd GMT Swiss Parts

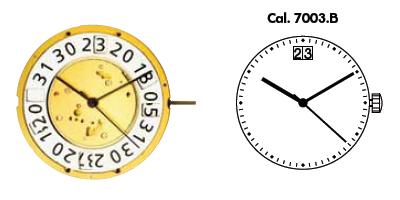

7003.B 15" d = 33.80 mm h = 5.60 mm 5 jewels Swiss Made

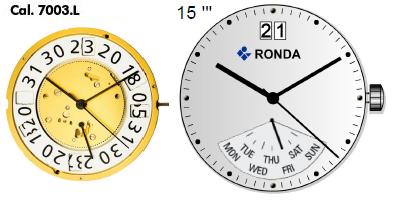

7003.L 15" d = 33.80 mm h = 5.60 mm 5 jewels Swiss Made

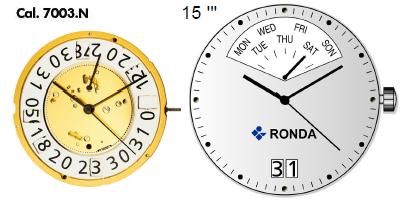

7003.N 15" d = 33.80 mm h = 5.60 mm 5 jewels Swiss Made

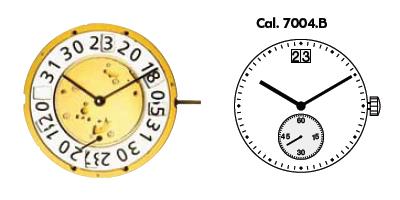

7004.B 15" d = 33.80 mm h = 5.60 mm 6 jewels Swiss Made

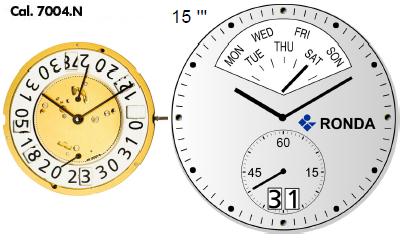

7004.N 15" d = 33.80 mm h = 5.60 mm 6 jewels Swiss Made

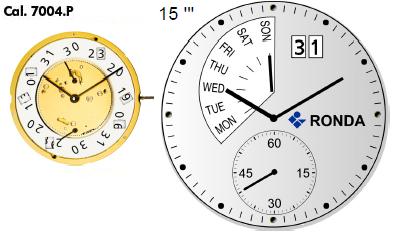

7004.P 15" d = 33.80 mm h = 5.60 mm 6 jewels Swiss Made

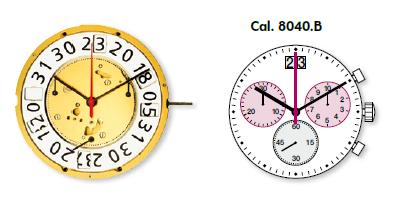

8040.B 15" d = 33.80 mm h = 5.60 mm 13 jewels Swiss Made

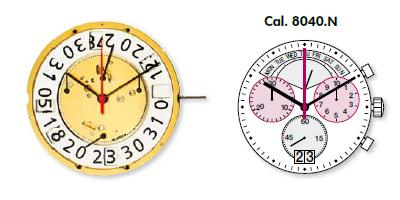

8040.N 15" d = 33.80 mm h = 5.60 mm 13 jewels Swiss Made

MASTERTECH már nincsenek a katalógusban / not anymore in the catalogue

f = 32 768 [Hz]

Data	Picture	-

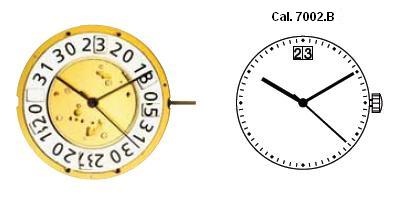

7002.B 15" d = 33.80 mm h = 5.60 mm 5 jewels Swiss Made Phased Out
7002.B 15" d = 33.80 mm h = 5.60 mm 0 jewels Swiss Parts Phased Out

Last update: 2010-Jul-3
