NORMTECH típuscsalád / NORMTECH family

SWISS MADE SWISS PARTS
5½''' 13.00 mm x 15.15 mm	751 2.5 mm	753 2.5 mm
6¾ x 8''' 15.30 mm x 17.80 mm	762 2.5 mm	763 2.5 mm
7¾''' 17.20 mm		773 2.5 mm	775 2.5 mm
8¾''' 19.40 mm		783 2.5 mm	785 2.5 mm	788 2.5 mm
10½''' 23.30 mm		703 2.5 mm	705 2.5 mm	708 2.98 mm	706.1 3.0 mm
10½''' 23.30 mm					706.3 3.0 mm
10½''' 23.30 mm					706.B 3.7 mm
11½''' 25.60 mm		713 2.55 mm	715 2.55 mm
11½''' 25.60 mm			715Li 4.6 mm

NORMTECH kvarc szerkezetek / quartz calibers

f = 32 768 [Hz]

Data	Picture	-

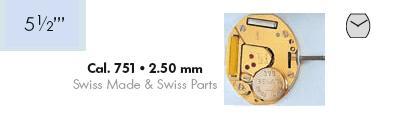

751 5½" d = 13.00 mm y = 15.15 mm h = 2.50 mm 4 jewels Swiss Made
751 5½" d = 13.00 mm y = 15.15 mm h = 2.50 mm 1 jewels Swiss Parts

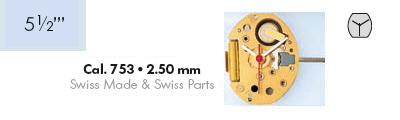

753 5½" d = 13.00 mm y = 15.15 mm h = 2.50 mm 5 jewels Swiss Made
753 5½" d = 13.00 mm y = 15.15 mm h = 2.50 mm 1 jewels Swiss Parts

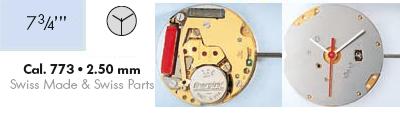

773 7¾" x = mm y = 17.20 mm h = 2.50 mm 5 jewels EOL Swiss Made
773 7¾" x = mm y = 17.20 mm h = 2.50 mm 1 jewels Swiss Parts

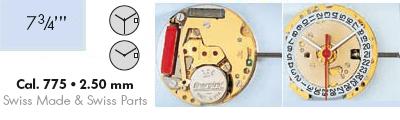

775 7¾" x = mm y = 17.20 mm h = 2.50 mm 5 jewels d EOL Swiss Made
775 7¾" x = mm y = 17.20 mm h = 2.50 mm 1 jewels d Swiss Parts

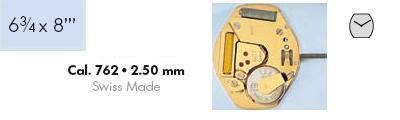

762 6¾" x 8" d = 15.30 mm y = 17.80 mm h = 2.50 mm 4 jewels Swiss Made
762 6¾" x 8" d = 15.30 mm y = 17.80 mm h = 2.50 mm 4 jewels Swiss Parts

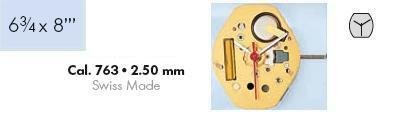

763 6¾" x 8" d = 15.30 mm y = 17.80 mm h = 2.50 mm 5 jewels Swiss Made
763 6¾" x 8" d = 15.30 mm y = 17.80 mm h = 2.50 mm 5 jewels Swiss Parts

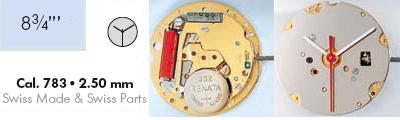

783 8¾''' x = mm y = 19.40 mm h = 2.50 mm 5 jewels EOL Swiss Made
783 8¾''' x = mm y = 19.40 mm h = 2.50 mm 1 jewels Swiss Parts

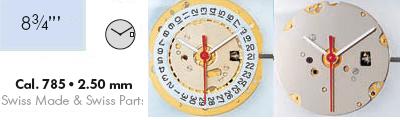

785 8¾''' x = mm y = 19.40 mm h = 2.50 mm 5 jewels d Swiss Made
785 8¾''' x = mm y = 19.40 mm h = 2.50 mm 1 jewels d Swiss Parts

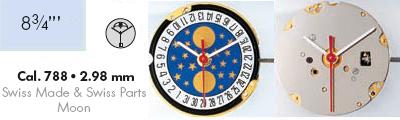

788 8¾''' x = mm y = 19.40 mm h = 2.98 mm 5 jewels d MPH Swiss Made
788 8¾''' x = mm y = 19.40 mm h = 2.98 mm 1 jewels d MPH Swiss Parts

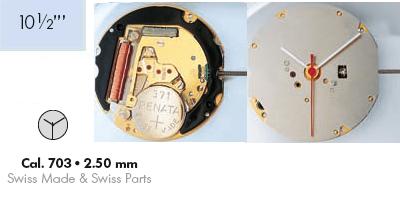

703 10½" x = mm y = 23.30 mm h = 2.50 mm 5 jewels EOL Swiss Made
703 10½" x = mm y = 23.30 mm h = 2.50 mm 1 jewels Swiss Parts

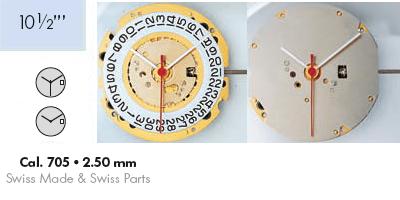

705 10½" x = mm y = 23.30 mm h = 2.50 mm 5 jewels d EOL Swiss Made
705 10½" x = mm y = 23.30 mm h = 2.50 mm 1 jewels d Swiss Parts

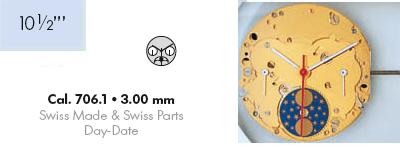

706.1 10½" x = mm y = 23.30 mm h = 3.00 mm 5 jewels EOL Swiss Made
706.1 10½" x = mm y = 23.30 mm h = 3.00 mm 1 jewels Swiss Parts
706.3 10½" x = mm y = 23.30 mm h = 3.00 mm 5 jewels MPH EOL CHR Swiss Made
706.3 10½" x = mm y = 23.30 mm h = 3.00 mm 1 jewels MPH CHR Swiss Parts

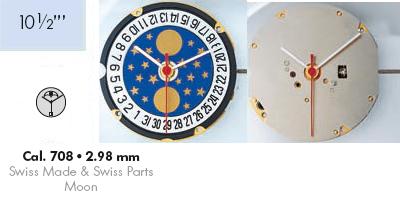

708 10½" x = mm y = 23.30 mm h = 2.98 mm 5 jewels MPH EOL Swiss Made
708 10½" x = mm y = 23.30 mm h = 2.98 mm 1 jewels MPH Swiss Parts

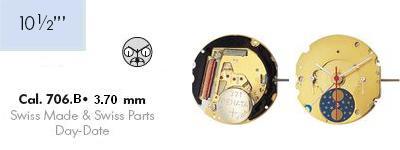

706.B 10½" x = mm y = 23.30 mm h = 3.70 mm 5 jewels d MPH EOL CHR Swiss Made
706.B 10½" x = mm y = 23.30 mm h = 3.70 mm 0 jewels d MPH CHR Swiss Parts
713 11½" x = mm y = 25.60 mm h = 2.50 mm 5 jewels EOL Swiss Made
713 11½" x = mm y = 25.60 mm h = 2.50 mm 1 jewels Swiss Parts

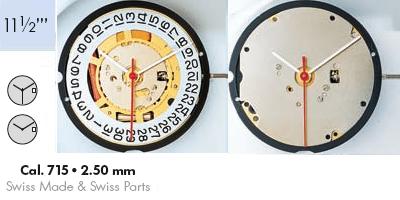

715 11½" x = mm y = 25.60 mm h = 2.50 mm 5 jewels d EOL Swiss Made
715 11½" x = mm y = 25.60 mm h = 2.50 mm 1 jewels d Swiss Parts
715Li 11½" x = mm y = 25.60 mm h = 4.60 mm 5 jewels d Swiss Made
715Li 11½" x = mm y = 25.60 mm h = 4.60 mm 5 jewels d Swiss Parts

NORMTECH már nincsenek a katalógusban / not anymore in the catalogue

f = 32 768 [Hz]

Data	Picture	-

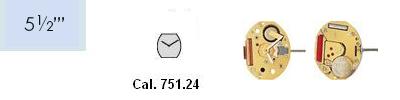

751.24 5½" d = 13.00 mm y = 15.15 mm h = 2.65 mm 0 jewels 24H Phased Out

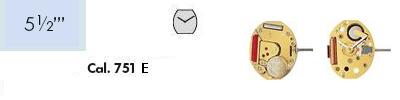

751E 5½" d = 13.00 mm y = 15.15 mm h = 2.65 mm 0 jewels Phased Out

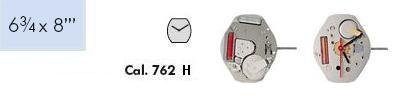

762H 6¾ x 8" d = 13.00 mm y = 15.15 mm h = 2.65 mm 0 jewels Phased Out

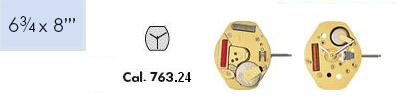

763.24 6¾ x 8" d = 13.00 mm y = 15.15 mm h = 2.65 mm 0 jewels Phased Out

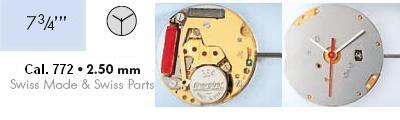

772 7¾" d = mm y = 17.20 mm h = 2.75 mm 0 jewels Phased Out

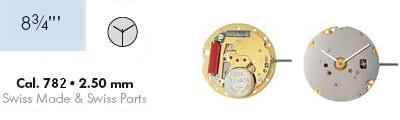

782 8¾" d = mm y = 19.40 mm h = 2.75 mm 0 jewels Phased Out

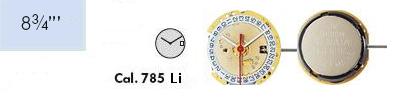

785Li 8¾" d = mm y = 20.00 mm h = 4.60 mm 0 jewels d Phased Out

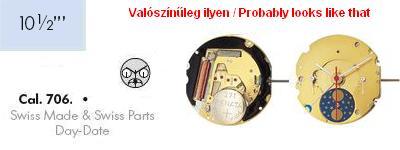

706 10½" d = mm y = 23.30 mm h = 3.25 mm 0 jewels MPH CHR Phased Out

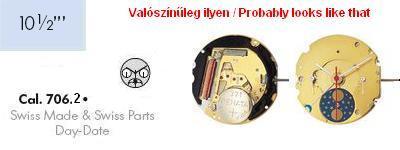

706.2 10½" d = mm y = 23.30 mm h = 3.25 mm 0 jewels MPH CHR Phased Out
702 10½" d = mm y = 23.90 mm h = 2.65 mm 0 jewels Phased Out

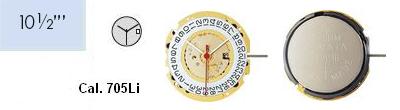

705Li 10½" d = mm y = 23.90 mm h = 4.60 mm 0 jewels d Phased Out
712 11½" d = mm y = 25.60 mm h = 2.65 mm 0 jewels Phased Out

Last update: 2010-Jul-3
