SLIMTECH típuscsalád / SLIMTECH family
SWISS MADE
SWISS PARTS
4¼'''
10.40 mm
1042
2.90 mm
3¾ x 6'''
9.00 x 13.50 mm
1032
1.95 mm
6¾ x 8'''
15.30 mm x 17.80 mm
1062
1.90 mm
1063
1.90 mm
1064
1.90 mm
1069
2.30 mm
SWISS MADE
10½'''
23.30 mm
1002
1.90 mm
1003
1.90 mm
1004
1.90 mm
1005
1.90 mm
1006
1.90 mm
1009
1.90 mm
11½'''
25.60 mm
1012
1.90 mm
1013
1.90 mm
1014
1.90 mm
1015
1.90 mm
1016
1.90 mm
1019
1.90 mm
Based on ...
www.ronda.ch
[ Vissza az RONDA szerkezet-hatrozóra / Back to RONDA calibre directory ]
SLIMTECH kvarc szerkezetek / quartz calibers
f
= 32 768 [Hz]
Data
-

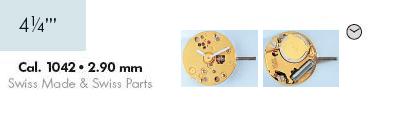

1042
4¼"
x = mm
y = 10.00 mm
h = 2.90 mm
5 jewels
Swiss Made
1042
4¼"
x = mm
y = 10.00 mm
h = 2.90 mm
5 jewels
Swiss Parts

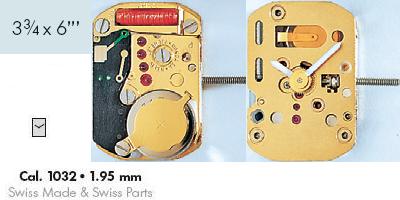

1032
3¾ x 6"
d = 9.00 mm
y = 13.50 mm
h = 1.95 mm
7 jewels
Swiss Made
1032
3¾ x 6"
d = 9.00 mm
y = 13.50 mm
h = 1.95 mm
7 jewels
Swiss Parts

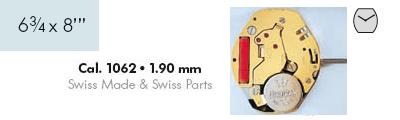

1062
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 1.90 mm
4 jewels
Swiss Made
1062
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 1.90 mm
1 jewels
Swiss Parts

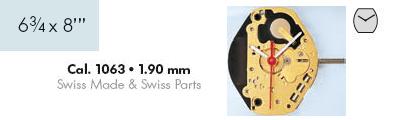

1063
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 1.90 mm
5 jewels
Swiss Made
1063
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 1.90 mm
1 jewels
Swiss Parts

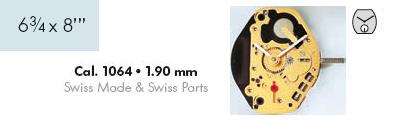

1064
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 1.90 mm
6 jewels
EOL
Swiss Made
1064
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 1.90 mm
2 jewels
Swiss Parts

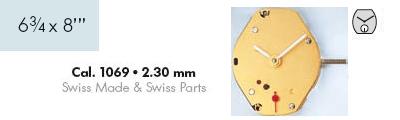

1069
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 2.30 mm
6 jewels
EOL
Swiss Made
1069
6"¾ x 8"
d = 15.30 mm
y = 17.80 mm
h = 2.30 mm
2 jewels
Swiss Parts
1002
10½"
x = mm
y = 23.30 mm
h = 1.90 mm
5 jewels
Swiss Made

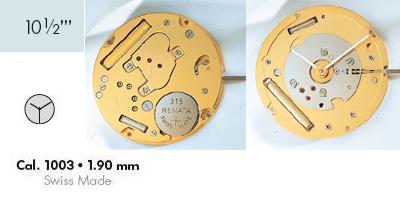

1003
10½"
x = mm
y = 23.30 mm
h = 1.90 mm
8 jewels
EOL
Swiss Made

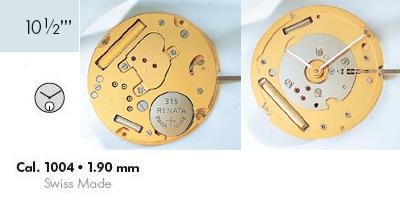

1004
10½"
x = mm
y = 23.30 mm
h = 1.90 mm
10 jewels
EOL
Swiss Made

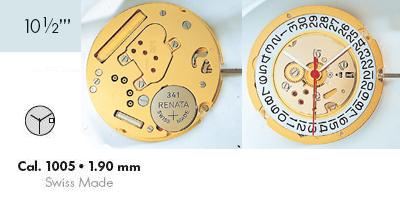

1005
10½"
x = mm
y = 23.30 mm
h = 1.90 mm
8 jewels
d
Swiss Made
1006
10½"
x = mm
y = 23.30 mm
h = 1.90 mm
8 jewels
d
Swiss Made

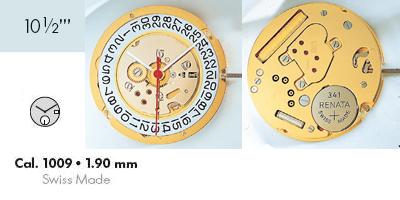

1009
10½"
x = mm
y = 23.30 mm
h = 1.90 mm
10 jewels
d
EOL
Swiss Made

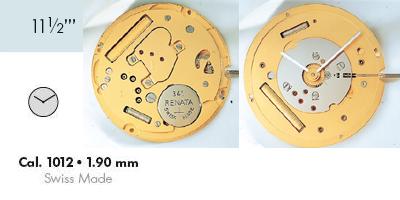

1012
11½"
x = mm
y = 25.60 mm
h = 1.90 mm
5 jewels
Swiss Made

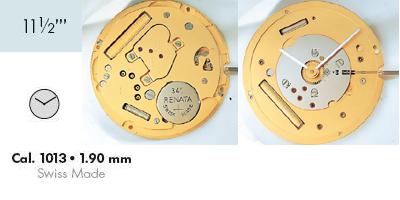

1013
11½"
x = mm
y = 25.60 mm
h = 1.90 mm
8 jewels
EOL
Swiss Made

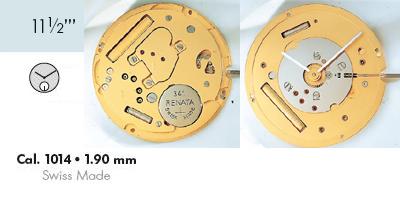

1014
11½"
x = mm
y = 25.60 mm
h = 1.90 mm
10 jewels
EOL
Swiss Made

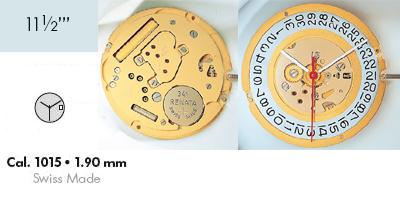

1015
11½"
x = mm
y = 25.60 mm
h = 1.90 mm
8 jewels
d
EOL
Swiss Made

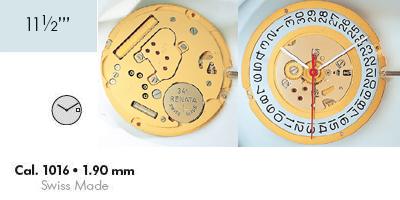

1016
11½"
x = mm
y = 25.60 mm
h = 1.90 mm
8 jewels
d
Swiss Made

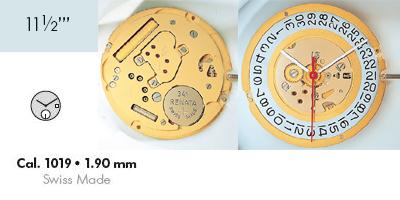

1019
11½"
x = mm
y = 25.60 mm
h = 1.90 mm
10 jewels
d
Swiss Made
Rövidítések / Acronyms
