STARTECH típuscsalád / STARTECH family

SWISS MADE / SWISS PARTS * 12½''' 28.00mm
BIG DATE	4003.B 4.40 mm
ALARM & BIG DATE			4120.B * 4.40 mm
DUAL & BIG DATE		4210.B * 4.40 mm	4220.B 4.40 mm

SWISS MADE / SWISS PARTS * 12½''' 28.00mm
DATE			5030.D * 4.40 mm	5130.D *
			5040.D * 4.40 mm
BIG DATE	5010.B 4.40 mm	5020.B * 4.40 mm	5040.B * 4.40 mm	5130.B 4.40 mm
			5050.B * 4.40 mm
DAY BIG DATE			5050.C 4.40 mm
			5051.C 4.40 mm
DAY DATE MONTH			5040.F 4.40 mm

STARTECH kvarc szerkezetek / quartz calibers

f = 32 768 [Hz]

Data	Picture	-

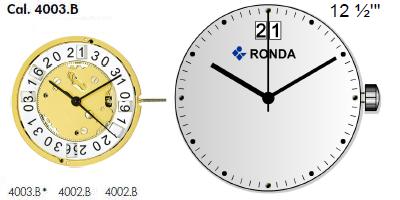

4003.B 12½" d = 28.00 mm h = 4.40 mm 5 jewels bd EOL Swiss Made

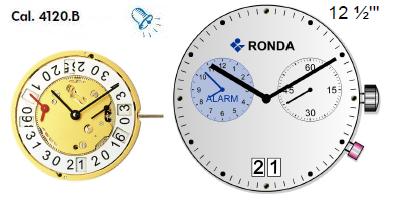

4120.B 12½" d = 28.00 mm h = 4.40 mm 7 jewels bd Swiss Made
4120.B 12½" d = 28.00 mm h = 4.40 mm 3 jewels bd Swiss Parts

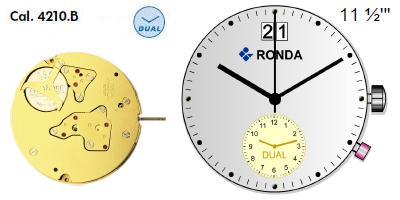

4210.B 12½" d = 28.00 mm h = 4.40 mm 8 jewels bd GMT Swiss Made
4210.B 12½" d = 28.00 mm h = 4.40 mm 4 jewels bd GMT Swiss Parts

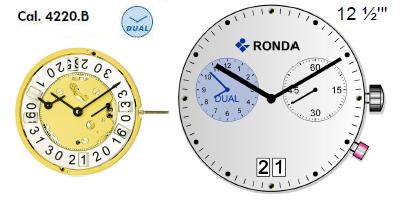

4220.B 12½" d = 28.00 mm h = 4.40 mm 7 jewels bd GMT Swiss Made

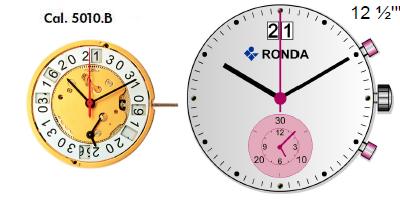

5010.B 12½" d = 28.00 mm h = 4.40 mm 10 jewels bd CHR Swiss Made

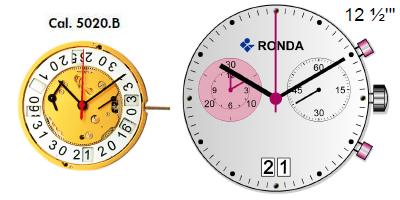

5020.B 12½" d = 28.00 mm h = 4.40 mm 10 jewels bd CHR Swiss Made
5020.B 12½" d = 28.00 mm h = 4.40 mm 5 jewels bd CHR Swiss Parts

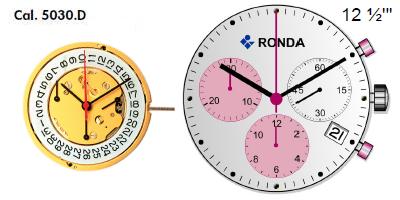

5030.D 12½" d = 28.00 mm h = 4.40 mm 13 jewels d CHR Swiss Made
5030.D 12½" d = 28.00 mm h = 4.40 mm 6 jewels d CHR Swiss Parts

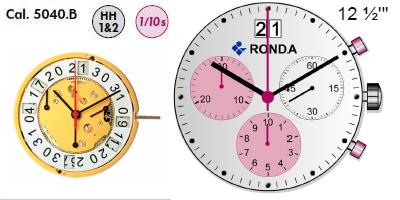

5040.B 12½" d = 28.00 mm h = 4.40 mm 13 jewels bd CHR Swiss Made

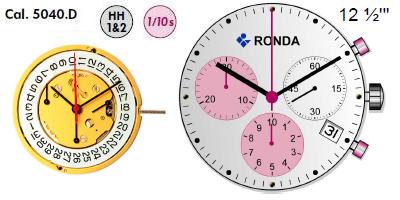

5040.D 12½" d = 28.00 mm h = 4.40 mm 13 jewels bd CHR Swiss Made
5040.D 12½" d = 28.00 mm h = 4.40 mm 6 jewels bd CHR Swiss Parts
5040.F 12½" d = 28.00 mm h = 4.40 mm 13 jewels pd FCL CHR Swiss Made

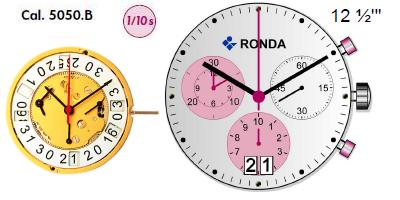

5050.B 12½" d = 28.00 mm h = 4.40 mm 13 jewels bd CHR Swiss Made
5050.B 12½" d = 28.00 mm h = 4.40 mm 6 jewels bd CHR Swiss Parts

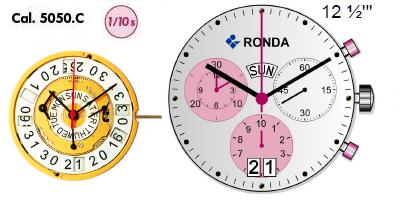

5050.C 12½" d = 28.00 mm h = 4.40 mm 13 jewels bdd CHR Swiss Made

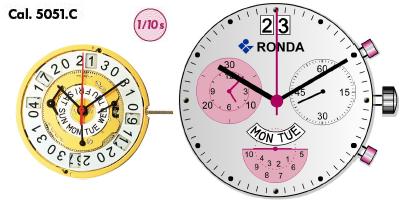

5051.C 12½" d = 28.00 mm h = 4.40 mm 13 jewels Swiss Made

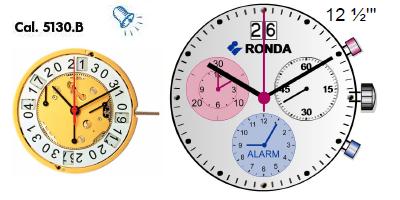

5130.B 12½" d = 28.00 mm h = 4.40 mm 13 jewels bd ALM CHR Swiss Made

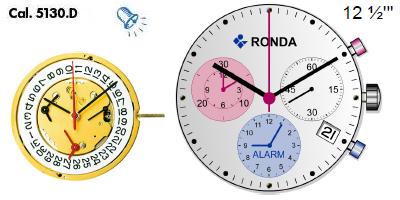

5130.D 12½" d = 28.00 mm h = 4.40 mm 13 jewels bd ALM CHR Swiss Made
5130.D 12½" d = 28.00 mm h = 4.40 mm 6 jewels bd ALM CHR Swiss Parts

STARTECH már nincsenek a katalógusban / not anymore in the catalogue

f = 32 768 [Hz]

Data	Picture	-

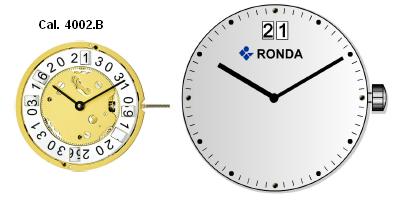

4002.B 12½" d = 28.00 mm h = 4.40 mm 5 jewels Phased Out

Last update: 2010-Jul-3
